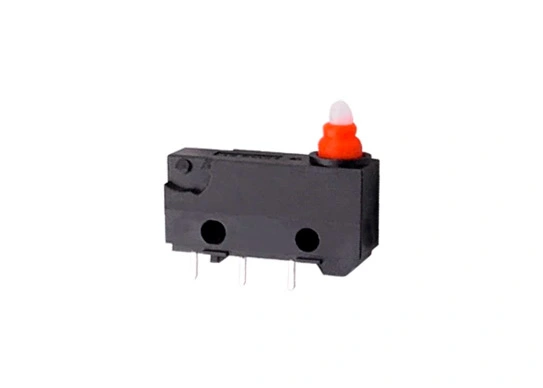

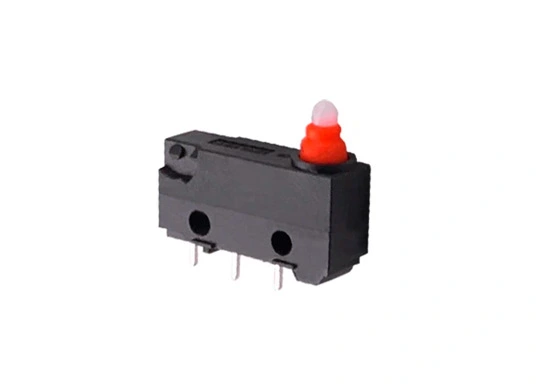

Place of Origin: Guangdong, China (Mainland)
Brand Name: Unionwell
Model Number: G9A05-200P00A-T017U
Terminal Type: Straight PCB Terminals
Lever Type: Pin Plunger
Circuit Code: SPDT
Dust and Water Proof (IP67) Design
Small Compact Size
Long Life, High Reliability
Variety of Terminals and Levers
Widely used in Auto Control, Appliance and Other Industry Control
Rating
P1
0.1A 125/250VAC 30VDC
05
UL: 5A 125/250VAC
ENEC: 5(2)A 125/250 30VDC
Operating Frequency
Electrical
10~30 cycles/minute
Mechanical
120 cycles/minute
Contact Resistance (Initiative)
100mΩ Max
Insulation Resistance (at 500VDC)
100MΩ Min
Dielectric Strength
AC1,000V RMS (50~60Hz)
Storage Temperature
-40°C~+85°C
Storage Humidity
95%RH Max
Service Life
50,000 cycles (Depend on part No.)
200,000 cycles
