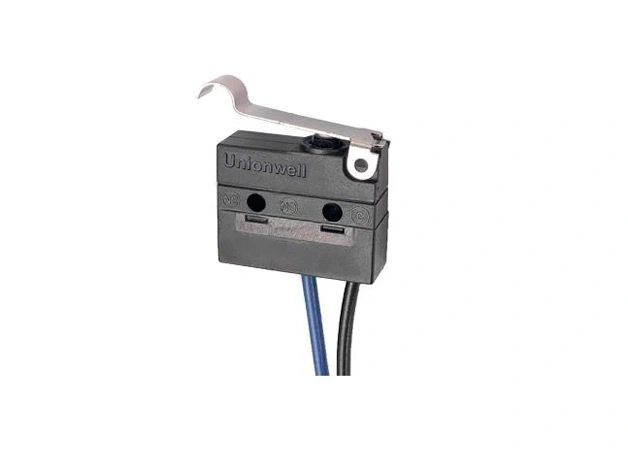

Name: Sealed Mini Micro Switch G9 Series
Brand: Guangzhou Unionwell Sensing & Control Technology Co., Ltd.

Descriptions of Sealed Mini Micro Switch G9 Series

The Sealed Mini Micro Switch G9 Series is designed with robust sealing for protection against environmental elements, ensuring reliability in demanding conditions. Ideal for applications requiring resistance to dust, moisture, and other contaminants, it offers precise switching capabilities in compact form factors. This series is suitable for use in automotive electronics, industrial machinery, and consumer electronics where reliability and longevity are essential factors for performance and durability.

Features of Sealed Mini Micro Switch G9 Series

Dust and Water Proof(IP67)Design
Small Compact Size
Long Life,High Reliability
Variety of Terminals and Levers
Wide Range Operating Force
Widely used in Auto Control,Appliance and Other Industry Control

Specifications of Sealed Mini Micro Switch G9 Series

Rating	P1	0.1A 125/250VAC 48VDC Gold Plated Contact Optional
	05	UL: 5A 125/250VAC
		ENEC: 6A 125/125 1E4; 3A 125/250VAC 30VDC 5E4 μ25T120
Operating Frequency	Electrical	10~30 cycles/min
	Mechanical	120 cycles/min
Contact Resistance (Initiative)		100mΩ Max (lt depends on the wire length for the type with wire)
Insulation Resistance (at 500VDC)		100mΩ Min
Dielectric Strength		AC 1,000V RMS(50-60Hz)
Storage Temperature		-25℃~+120℃
Storage Humidity		85% RH Max.
Service Life	Electrical	10,000 cycles (Depend on part No.)
	Mechanical	500,000 cycles
