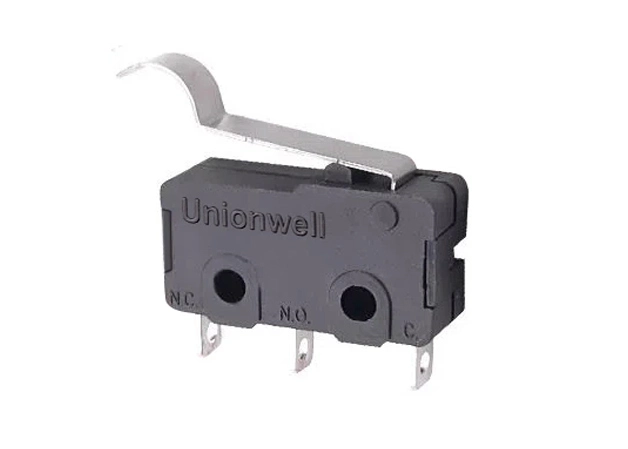

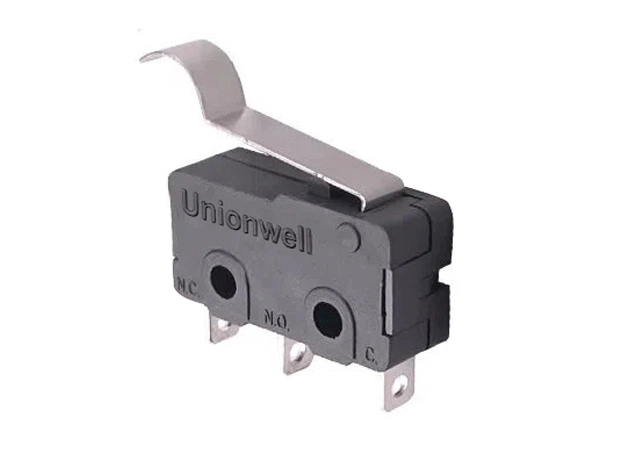

Name: Miniature Micro Switch 350gf Simulated Roller Lever
Brand: Guangzhou Unionwell Sensing & Control Technology Co., Ltd.

Description of Miniature Micro Switch 350gf Simulated Roller Lever

There are plenty of snap action switch suppliers in the market, which are designed for different applications, especially for home appliances, automobiles, electrical devices, and electronic products etc. These snap-action switches are offered at different prices. Some of their price is high, while others are so low.

Quick Details of Miniature Micro Switch 350gf Simulated Roller Lever

Place of Origin: Guangdong, China (Mainland)
Brand Name: Unionwell
Model Number: G610-350S05A-D5U
Terminal Type: Solder Terminals
Circuit Code: SPDT
Lever Type: Simulated Roller Lever
Safety Certificates: UL/cUL, ENEC, CQC, etc.
Company quality assurance system: ISO9001 & IATF16949 &ISO14001

Features of Miniature Micro Switch 350gf Simulated Roller Lever

Small Compact Size
Variety of Actuator and Terminals
Global Safety Approvals
Long Life and High Reliability
High Rating to 10(2)A, 1/4HP
Customized Designs
Widely used in Auto Control, Appliance Control

Product Parameters of Miniature Micro Switch 350gf Simulated Roller Lever

Rating	P1/P11/P12	ENEC: 0.1A,125/250V 48VDC 5EA UL: 0.1A,125/250V 48VDC Gold Plated Contact Optional
	05/051/052	ENEC: 5A,125/250VAC UL: 5A, 1/8HP 125/250VAC
	10/101	ENEC: 10(2)A,125/250VAC U 25T125 UL: 10.1A, 1/4HP 125/250VAC Note: 250gf/Only with "OF "over "250gf"
	12	ENEC: 12(6)A,125/250VACU40T125 UL: 12A, 125/250VAC Note:350gf/Only with 350gf OF
Operating Frequency	Electrical	10-30 cycles/minute
Operating Frequency	Mechanical	120 cycles/minute
Contact Resistance (Initiative )		100mΩ Max (without wire type)
Insulation Resistance (at 500VDC)		100MΩ Min
Dielectric Strength		AC 1,000RMS(50-60Hz)
Storage Temperature		-25℃~+125℃
Storage Humidity		85%RH Max
Service Life	Electrical	10,000-50,000 /cycles (Depend on part No.)
Service Life	Mechanical	1,000,000/cycles
