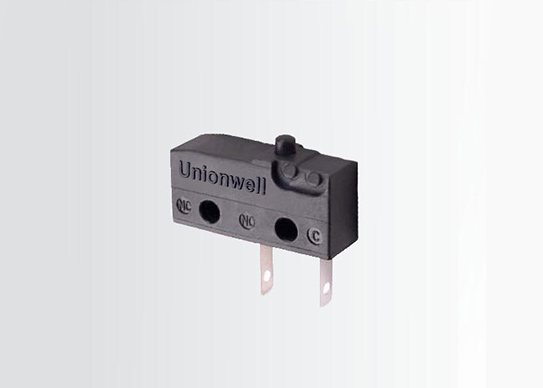

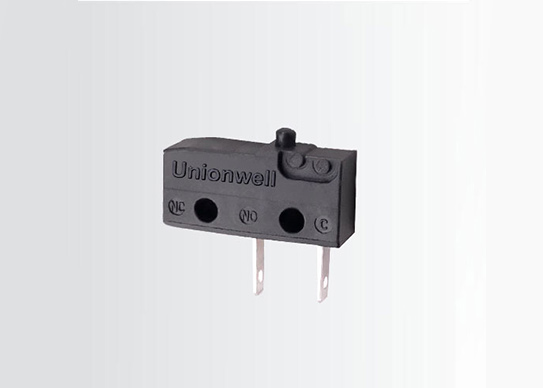

Refrigerator Micro Switch G91P1
micro limit switch dimensions
micro limit switch dimensions

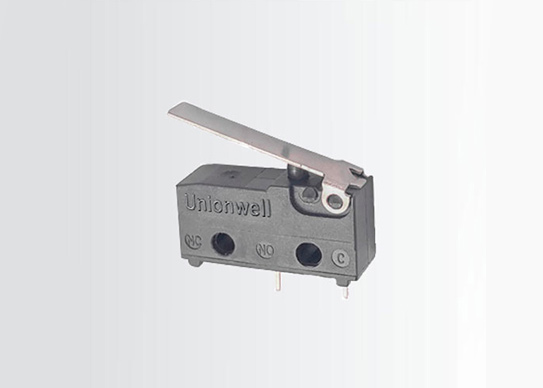

micro switch 10a 250vac

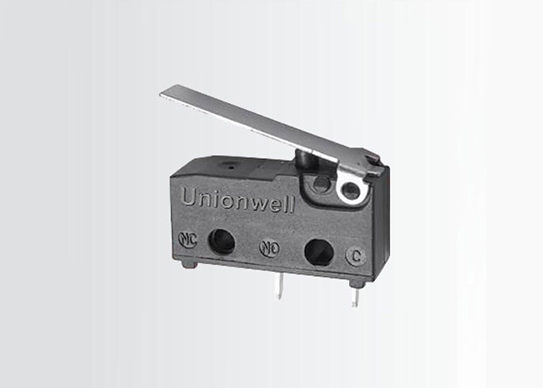

refrigerator micro switch g91p1
micro limit switch wiring

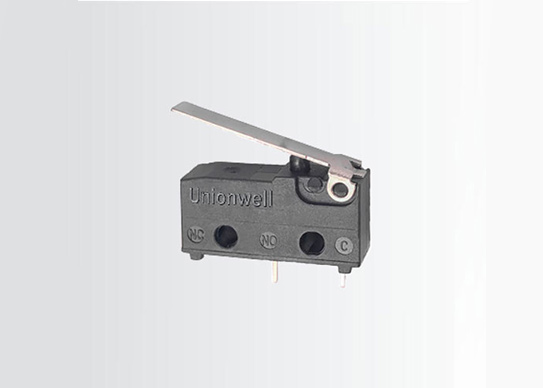

refrigerator micro switch

Refrigerator Micro Switch G91P1

  • Small dimensions and compact structure

  • High durability and reliability

  • Multiple options for levers and terminals

Contact Us

Specifications of Refrigerator Micro Switch G91P1

Place of OriginGuangdong, China (Mainland)
Brand NameUnionwell
ModelRefrigerator Micro Switch G91P1
Operation Force100gf/150gf/250gf/300gf
Terminal TypeSolder/PCB/Quick Connect
Lever TypeNo Lever/Pin Plunger/Cambered Surface/Straight/Simulated Roller/Roller
Circuit CodeSPDT/SPST-NO/SPST-NC
CertificationsENEC, UL/cUL, CQC
OEM/ODMAvailable
RatingP10.1A,125/250V  48VDC
Gold Plated Contact Optional
05ENEC: 5A 125/250VAC; 5A 1/8HP, 125/250VAC
10ENEC: 10 (1.5A) 125/250VAC;UL:10A 1/4HP 125/250VAC
Operating FrequencyElectrical10~30 cycles/minute
Mechanical120 cycles/minute
Contact Resistance(Initiative)100mΩ Max
Insulation Resistance (at 500VDC)100mΩ Min
Dielectric strengthAC, 1,000RMS (50-60Hz)
Operating Temperature-40°C~+125°C or -40°C~+85°C
Operating Humidity85% RH Max
Life ExpectancyElectrical10,000-100,000 cycles (depending on specific model selection)
Mechanical500,000 cycles


Products

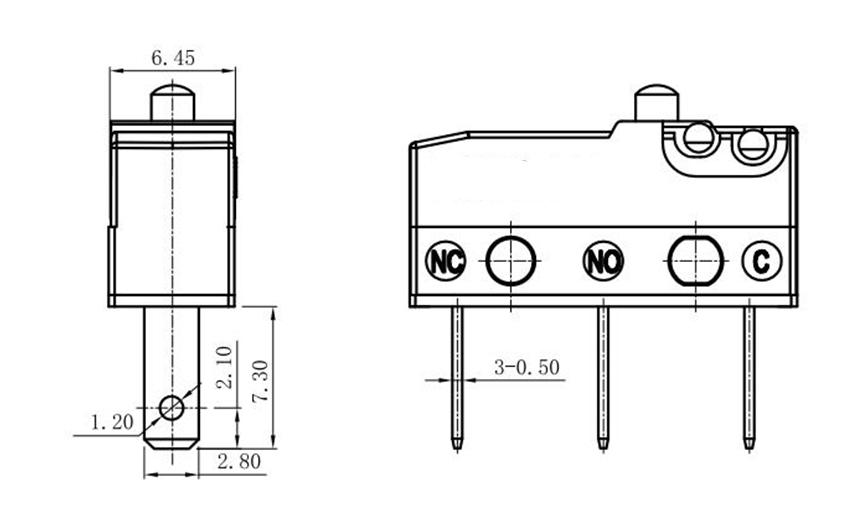

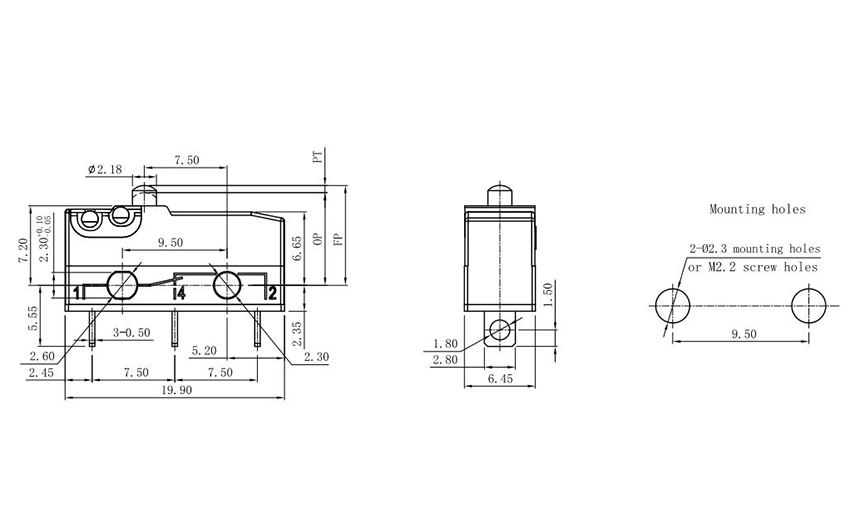

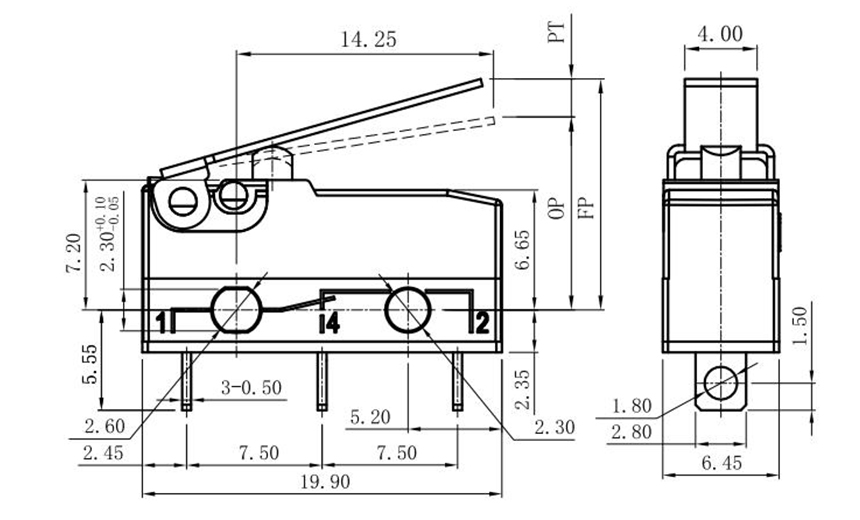

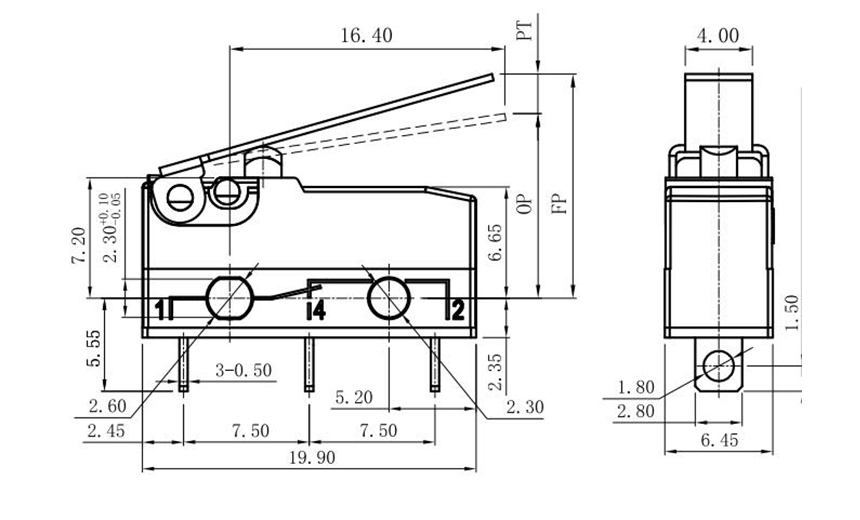

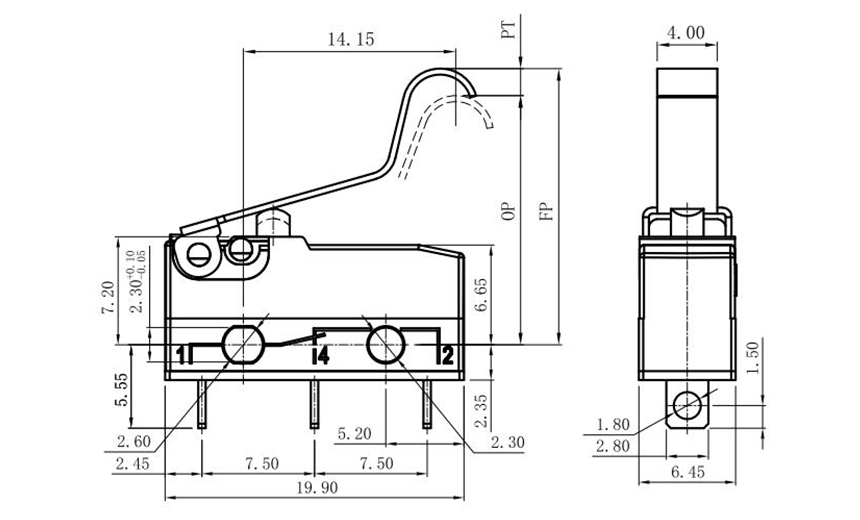

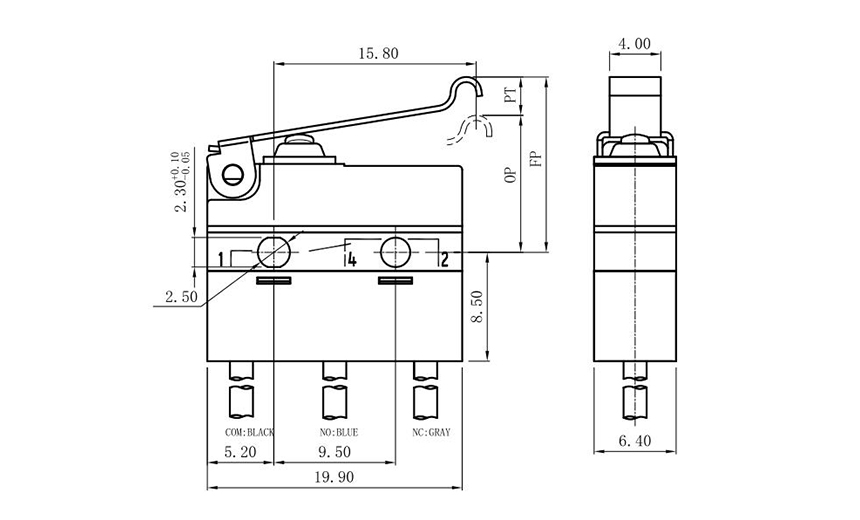

Product Drawing of Refrigerator Micro Switch G9

micro switch 10a
micro switch 10a 250vac
refrigerator micro switch
micro switch 10a 2
refrigerator micro switch 2
micro switch 10a 250vac 2

Refrigerator Micro Switch G9 Related Applications

Home Appliances and Micro Switches
Home Appliances
