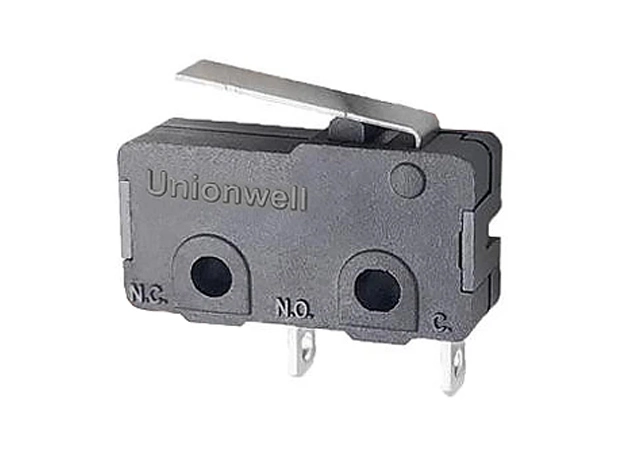

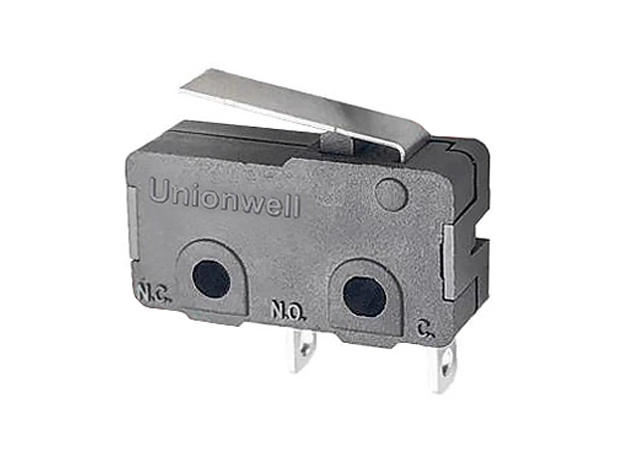

Name: Miniature Micro Switch With Straight Lever G6
Brand: Guangzhou Unionwell Sensing & Control Technology Co., Ltd.

Description of Miniature Micro Switch With Straight Lever G6

The Miniature Micro Switch with Straight Lever G6 is a highly versatile and compact switch, designed to provide precise control in various applications. Its small size makes it ideal for use in tight or confined spaces, where traditional switches might not fit. This micro switch features a straight lever actuator, which ensures smooth and consistent operation, making it suitable for tasks that require high sensitivity and accuracy.

Manufactured for durability, the G6 switch is built to withstand frequent use and harsh environmental conditions, providing reliable performance over a long lifespan. It is commonly used in a wide range of industrial and electronic devices, including home appliances, automotive systems, medical equipment, and more. Its robust design and dependable functionality make it a popular choice for engineers and manufacturers seeking a reliable switching solution. With the G6 micro switch, users can expect efficient performance, easy installation, and excellent value for their projects.

Products Description of Miniature Micro Switch With Straight Lever G6

Brand Name: Unionwell
Model Number: G605-250S10C-18
Terminal Type: solder Terminals
Circuit code: SPST-NO
Lever Type: straight lever
Small Compact Size
Customized Designs

Specifications of Miniature Micro Switch With Straight Lever G6

Rating	P1/P11/P12	ENEC: 0.1A,125/250V 48VDC 5EA UL: 0.1A,125/250V 48VDC Gold Plated Contact Optional
	05/051/052	ENEC: 5A,125/250VAC UL: 5A, 1/8HP 125/250VAC
	10/101	ENEC: 10(2)A,125/250VAC U 25T125 UL: 10.1A, 1/4HP 125/250VAC Note: 250gf/Only with "OF "over "250gf"
	12	ENEC: 12(6)A,125/250VACU40T125 UL: 12A, 125/250VAC Note:350gf/Only with 350gf OF
Operating Frequency	Electrical	10-30 cycles/minute
Operating Frequency	Mechanical	120 cycles/minute
Contact Resistance (Initiative )		100mΩ Max (without wire type)
Insulation Resistance (at 500VDC)		100mΩ Min
Dielectric Strength		AC 1,000RMS(50-60HZ)
Storage Temperature		-25℃~+125℃
Storage Humidity		85%RH Max
Service Life	Electrical	10,000-50,000 cycles (Depend on part No.)
Service Life	Mechanical	1,000,000 cycles
