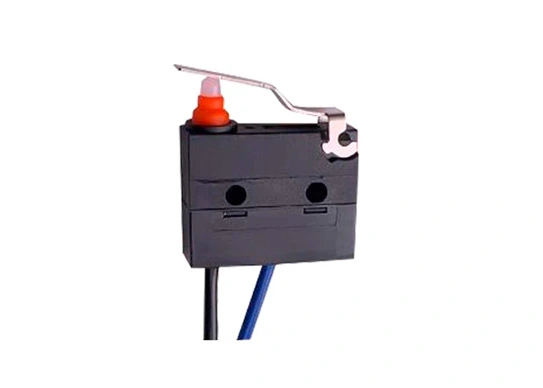

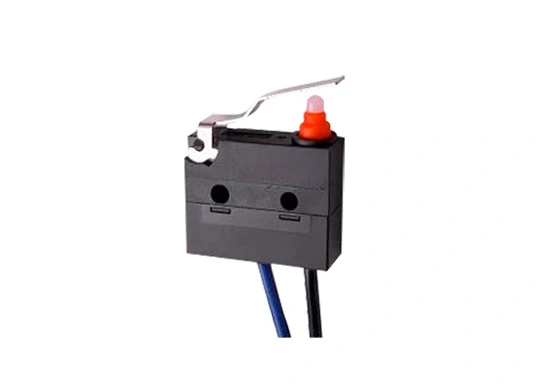

Place of Origin: Guangdong, China (Mainland)
Brand Name: Unionwell
Model Number: G9A05-200E01CF-400
Terminal Type: wires leads to bottom
Circuit code: SPST-NO
Lever Type: short straight lever
Company assurance system: ISO9001 & IATF16949
Dust and Water Proof(IP67)Design
Small Compact Size
Long Life, High Reliability
Variety of Terminals and Levers
Widely used in Auto Control,Appliance and Other Industry Control
Rating
p1
0.1A 125/250VAC 48VDC/GoldPlated Contact Optional
05
UL: 5A 125/250VAC
ENEC: 6A 125/250 1E4; 3A 125/250VAC 30VDC 5E4 µ25T120
Operating Frequency
Electrical
10~30cycles/minute
Mechanical
120cycles/minute
Contact Resistance(Initiative)
100mΩ Max/It depends on the wire length for the type with wire
Insulation Resistance (at 500VDC)
100mΩ Min
Dielectric Strength
AC1,000V RMS (50~60Hz)
Storage Temperature
-25°C~+120°C
Storage Humidity
85%RH Max
Service Life
10,000cycles/Depend on part No.
500,000cycles
