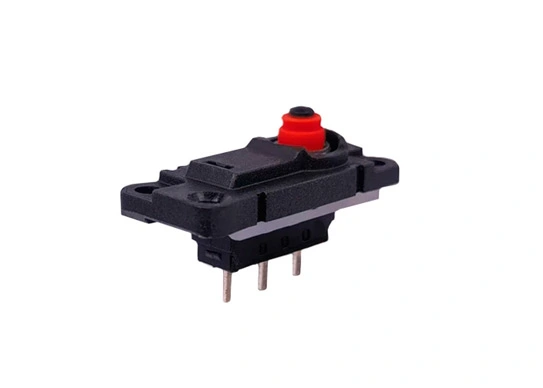

Straight PCB Terminals Waterproof Micro Switch G303
Straight PCB Terminals (0.6mm Width) Waterproof Micro Switch G303
Straight PCB Terminals (0.6mm Width) Waterproof Micro Switch G303
Straight PCB Terminals (0.6mm Width) Waterproof Micro Switch G303
Straight PCB Terminals (0.6mm Width) Waterproof Micro Switch G303

Straight PCB Terminals Waterproof Micro Switch G303

  • Waterproof & Dustproof: IP67-rated for excellent protection against water and dust.

  • Secure PCB Connection: Straight PCB terminals ensure a reliable and stable solder connection.

  • Robust Performance: Designed for outdoor, marine, and industrial applications where moisture is a concern.

  • Compact & Durable: Small size with high reliability and long service life.

  • Versatile Use: Ideal for automotive electronics, appliances, and industrial control systems.

  • Global Safety Approvals: Certified to meet international safety standards.


Contact Us

The Unionwell Straight PCB Terminals Waterproof Micro Switch G303 (Model: G303-130P00A61U) is engineered for dependable performance in harsh environments. Its robust construction and waterproof design provide outstanding protection against moisture, making it well-suited for outdoor, marine, and industrial applications.


The switch features straight PCB terminals, which facilitate a secure and stable connection to your printed circuit board. This design minimizes the risk of disconnection or failure, ensuring uninterrupted operation in critical applications. In addition to its reliable electrical performance, the compact size of this switch makes it a versatile choice for use in automotive electronics, household appliances, and industrial control designs.


With global safety approvals and an IP67 rating, the Unionwell G303 offers long life and high reliability, ensuring that your projects can operate safely and efficiently even in challenging conditions.


Parameters

Rating0.1A, 125/250VAC; 3A/12VDC; 0.1A/48VDC; μ 1E5
Operating FrequencyElectrical0.1A,120 cycles/min 3A,10~30 cycles/min
Mechanical120 cycles/min
Contact Resistance(Initiative)100mΩ Max. (without wire type)
nsulation Resistance (at 500VDC)100MΩ Min
Vibration Durability10~55Hz, move 0.75mm(p-p)
Dielectric Strength500VAC(50~60Hz)
Operating Temperature-40°℃~+85℃
Operating Humidity85%RH   Max
Service LifeElectricalMin.100,000 cycles (Depend on part NO.)
MechanicalMin.500,000 cycles
