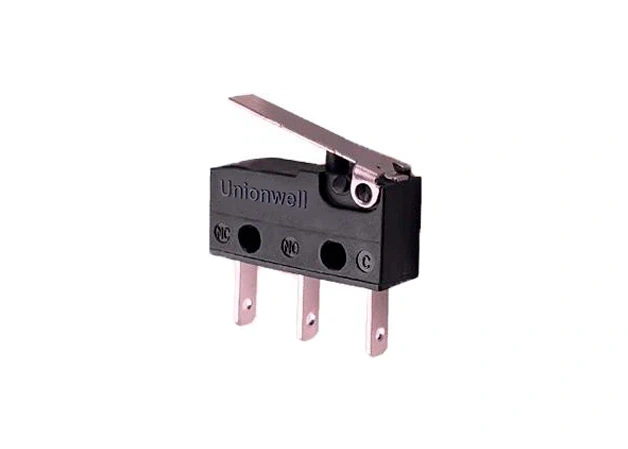

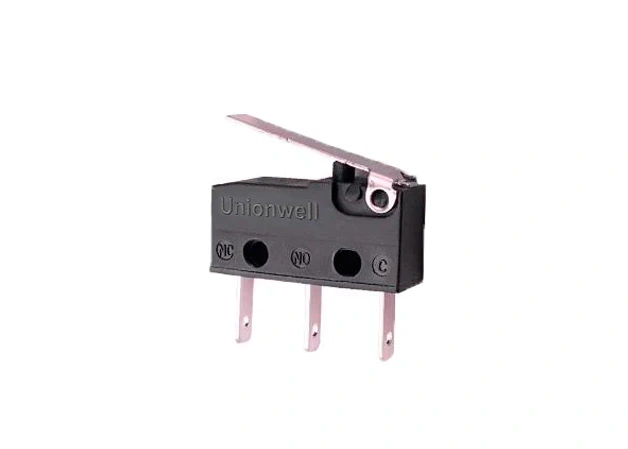

Dustproof Micro Switch 250GF SPDT
Dustproof Micro Switch 250GF SPDT
Dustproof Micro Switch 250GF SPDT
Dustproof Micro Switch 250GF SPDT

Dustproof Micro Switch 250GF SPDT

  • Place of Origin: Guangdong, China (Mainland)

  • Brand Name: Unionwell

  • Model Number: G9110-250D01D1

  • Terminal Type: Quick Connect Terminals

  • Circuit Code: SPDT

  • Lever Type: Short Straight Lever

Contact Us

Descriptions of Dustproof Micro Switch 250GF SPDT

Understanding the terminals of micro switches is crucial when designing electronic circuits, as it helps properly connect the switch to the rest of the circuit. It is also important to note that micro switches are highly reliable and can be used in various applications, including gaming controllers, security systems, vending machines, and much more.


Specifications of Dustproof Micro Switch 250GF SPDT

RatingP10.1A 125/250VAC 48VDC 5E4 Gold Plated Contact Optional
05UL: 5A 125/250VAC
ENEC: 6A 125/250VAC 1E4; 3A 125/250VAC 30VDC 25T120  μ 5E4
Operating FrequencyElectrical10~30 cycles/min
Mechanical120 cycles/min
Contact Resistance (Initiative)100mΩ Max (lt depends on the wire length for the type with wire)
Insulation Resistance (at 500VDC)100mΩ Min
Dielectric StrengthAC 1,000V RMS(50-60Hz)
Storage Temperature-25℃~+120℃
Storage Humidity85% RH Max.
Service LifeElectrical10,000~100,000 cycles (Depend on P/N)
Mechanical500,000 cycles
