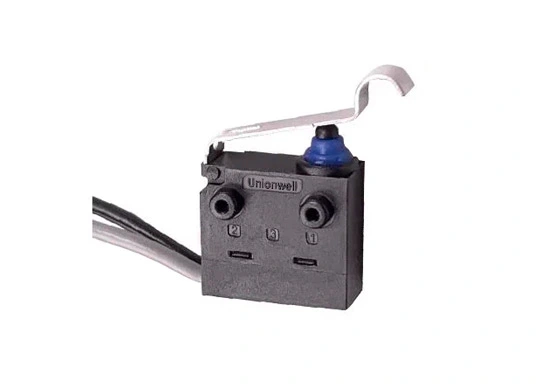

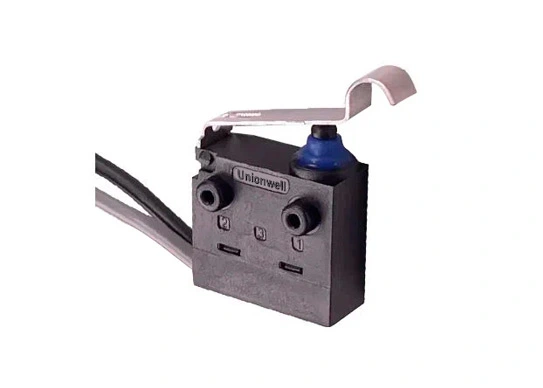

Subminiature Waterproof Switch SPDT-NC With Lever
Subminiature Waterproof Switch SPDT-NC With Lever
Subminiature Waterproof Switch SPDT-NC With Lever
Subminiature Waterproof Switch SPDT-NC With Lever

Subminiature Waterproof Switch SPDT-NC With Lever

  • Place of Origin: Guangdong, China (Mainland)

  • Brand Name: Unionwell

  • Model Number: G303-130F31B50J-FA60

  • Rating: 0.1A 125/250VAC; 3A 12VDC; 0.1A 48VDC μ1E5.

  • Terminal: Molded Lead Wires on Right Side

  • Circuit Code: SPST-NC

  • Lever Type: 31# lever

  • Safety Certificates: Products are safety approved by global main market

  • Company Assurance System: ISO9001 & IATF16949

  • Application: Car, Air conditioner, Auto Electronics, Communication

  • Electric Toothbrush, Home Appliance, Motor Control, etc.

Contact Us

Specifications of Subminiature Waterproof Switch SPDT-NC With Lever

Rating0.1A/125VAC; 3A/12VDC;0.1A/250VAC; 0.1A/48VDC μ1E5
Operating FrequencyElectrical0.1A-120 cycles/min; 3A-10~30 cycles/min
Mechanical120 cycles/min
Contact Resistance (Initiative)100mΩ Max.
Insulation Resistance (at 500VDC)100mΩ Min.
Vibration Durability10~55Hz, move 0.75mm(p-p)
Dielectric Strength500VAC (50~60Hz)
Operating Temperature-40℃~+85℃
Operating Humidity85% RH Max
Service LifeElectricalMin.100,000 cycles
MechanicalMin.500,000 cycles
