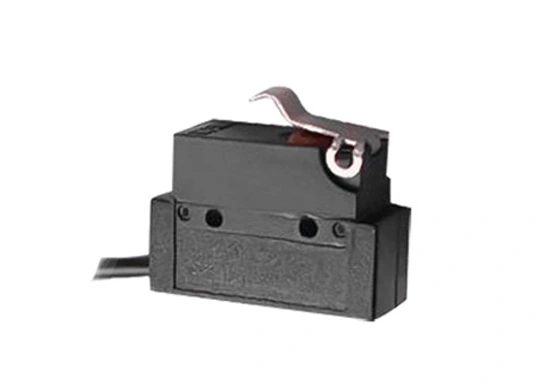

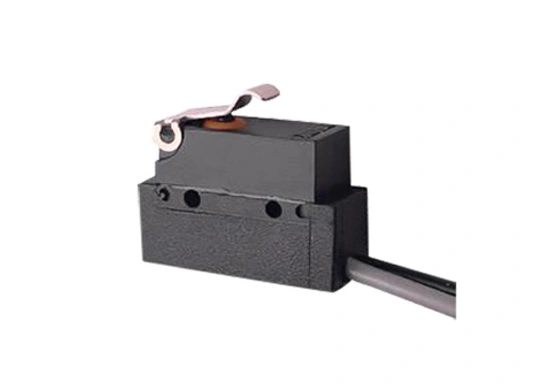

G10B IP67 Waterproof Micro Switch Straight Lever
G10B03-150F0213-150U-02
G10B03-150F0213-150U-02
G10B03-150F0213-150U-2

G10B IP67 Waterproof Micro Switch Straight Lever

  • Place of Origin: Guangdong, China (Mainland)

  • Brand Name: Unionwell

  • Model Number: G10B03-150F0213-150U

  • Electrical Rating: ENEC/CQC, 3A 125/250VAC 30VDC, 1E4 μ 40T85

  • Operating Force: 150gf Max

  • Terminal Style: Molded Lead Wires – Lead To The Right Side (Opposite To Plunger Side)

  • Lever Type: 02# Straight Lever

  • Features: Small Compact Size, Long Life & High Reliability, Designed for Waterproof (IP67) and Dustproof, Widely Used in Appliance and Industrial Control

Contact Us Datasheet

The G10B IP67 Waterproof Micro Switch Straight Lever (G10B03-150F0213-150U) is built with high performance in mind, meeting ENEC/CQC and UL/cUL standards. Featuring a 02# Straight Lever design, this switch offers a small compact size combined with long service life and high reliability. It is designed for both waterproof (IP67) and dustproof operation, making it suitable for a wide range of applications in appliance and industrial control systems. With an electrical rating of 3A at 125/250VAC and 30VDC, and an operating force of 150gf max, the switch utilizes molded lead wires positioned to the right side (opposite to the plunger side) to ensure precise performance.


Parameters:

RatingP10.1A 125/250VAC 30VDC
033A  125/250VAC 30VDC
Operating FrequencyElectrical10~30  Cycles/minute
Mechanical120 Cycles/minute
Contact Resistance(initial value)100mΩ Max
Insulation Resistanceat 500VDC,100MΩ Min.
Dielectric StrengthAC 600VAC RMS (50-60HZ)
Storage Temperature-40°C~+85°C
Storage Humidity85%RH Max
Service LifeElectrical10,000 Cycles
Mechanical300,000 Cycles


Products
Contact with Us
Tel:
+86-20-87713867
E-mail:
inquiry@unionwellgz.com
Add:
RM1311, Renfeng Building, No. 490, Tianhe Road, Tianhe District, Guangzhou, Guangdong, China, 510630.
Unionwell
Switches are us, switch to us. Find quality micro switches at Unionwell

Popular IP67 Waterproof & Dustproof Subminiature Micro Switch G10B series

IP67 Waterproof Micro Switch with Customized Lever G10B
IP67 Waterproof Micro Switch with Customized Lever G10B
G10B Sealed Waterproof Micro Switch
G10B Sealed Waterproof Micro Switch
Waterproof Mini Micro Switch Custom Lever G10B
Waterproof Mini Micro Switch Custom Lever G10B

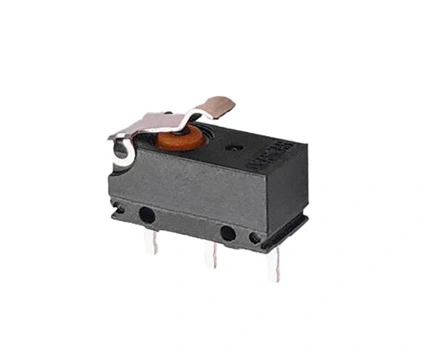

G10B Waterproof Subminiature Micro Switch with Straight PCB Terminals
