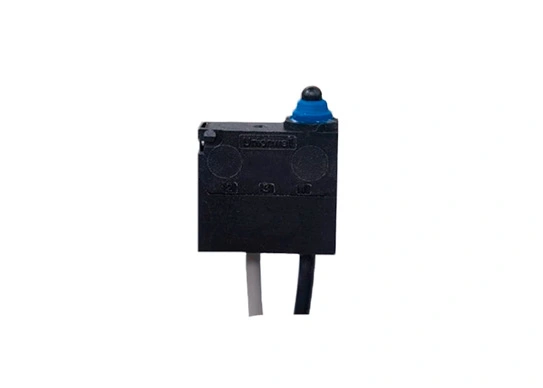

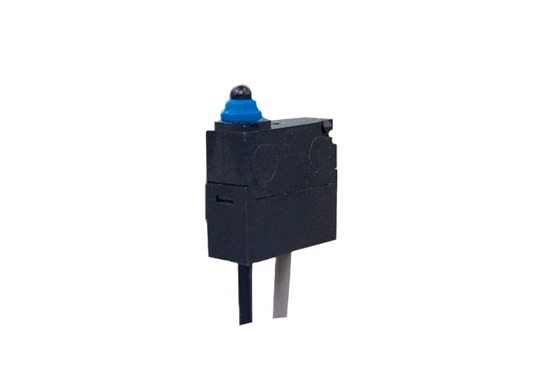

With Inner Resistor Sealed Subminiature Micro Switch G303R
With Inner Resistor Sealed Subminiature Micro Switch G303R
With Inner Resistor Sealed Subminiature Micro Switch G303R
With Inner Resistor Sealed Subminiature Micro Switch G303R
With Inner Resistor Sealed Subminiature Micro Switch G303R

With Inner Resistor Sealed Subminiature Micro Switch G303R

  • Enhanced Surge Protection: Integrated inner resistor protects against electrical surges.

  • Sealed for Durability: IP67-rated design ensures water and dust tight performance.

  • Compact & Reliable: Small subminiature form factor with long service life.

  • Versatile Applications: Ideal for automotive electronics, appliances, and industrial control designs.

  • Globally Approved: Certified to meet international safety standards.

Contact Us

The With Inner Resistor Sealed Subminiature Micro Switch G303R (Model: G303R-130E00B48-FA200-TA404) from Unionwell represents a significant advancement in electronic component design. Precision-engineered and sealed for durability, this micro switch incorporates an inner resistor that offers enhanced surge protection. This design not only improves the safety and longevity of the device but also expands its functionality in a wide range of applications.


Built to operate in challenging environments, the G303R is designed with an IP67 rating to ensure robust protection against water and dust ingress. Its compact size and subminiature design are perfect for applications where space is at a premium, such as automotive electronics, household appliances, and industrial control systems. With global safety approvals and a proven long service life, this micro switch is a reliable and versatile choice for demanding electronic systems.


Parameters

Rating0.1A,125/250VAC; 3A/12VDC; 0.1A/48VDC; μ 1E5
Operating FrequencyElectrical0.1A,120 cycles/min 3A,10~30 cycles/min
Mechanical120 cycles/min
Contact Resistance (Initiative)100mΩ Max.(without wire type)
Insulation Resistance (at 500VDC)100MΩ Min.
Vibration Durability10~55Hz, move 0.75mm (p-p)
Dielectric Strength500VAC (50~60Hz)
Operating Temperature-40℃~ +85℃
Operating Humidity85%RH Max.
Service LifeElectricalMin.100,000 cycles (Depend on part NO.)
MechanicalMin. 500,000 cycles
