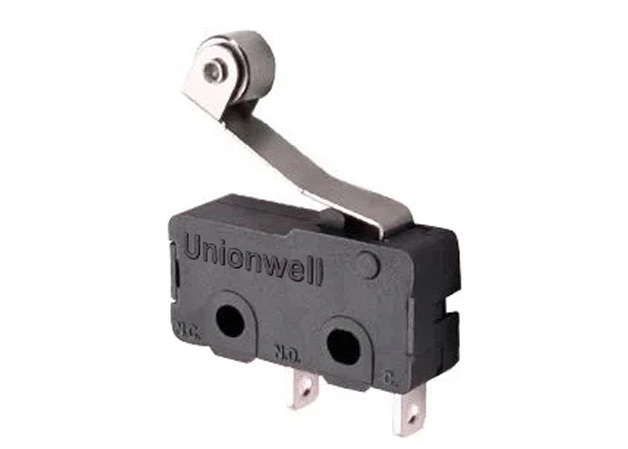

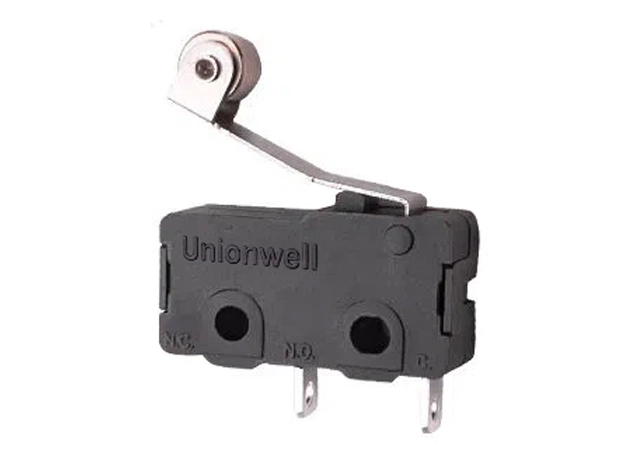

Name: Miniature Micro Switch SPST-NO Solder Terminals
Brand: Guangzhou Unionwell Sensing & Control Technology Co., Ltd.

Description of Miniature Micro Switch SPST-NO Solder Terminals

Looking for the perfect micro switch to help you take your project to the next level? Our top-of-the-line micro switches are designed to provide the precision and reliability you need.

With their compact size and unparalleled performance, our micro switches are the perfect choice for various applications, from home appliances and automobiles to gaming and electronics. And with their easy-to-use design and durable construction, you'll be able to rely on them for years.

But don't just take our word for it! Our micro switches have been tested and proven to be some of the best on the market today. We have the solution to get your project moving in the right direction.

So why wait? Head over to our website today and see for yourself why our micro switches are the choice of so many satisfied customers.

Product Quick Details of Miniature Micro Switch SPST-NO Solder Terminals

Place of Origin: Guangdong, China (Mainland)
Brand Name: Unionwell
Model Number: G605-250S97CS

Product Parameters of Miniature Micro Switch SPST-NO Solder Terminals

Rating	P1/P11/P12	ENEC: 0.1A,125/250V 48VDC 5EA UL: 0.1A,125/250V 48VDC Gold Plated Contact Optional
	05/051/052	ENEC: 5A,125/250VAC UL: 5A, 1/8HP 125/250VAC
	10/101	ENEC: 10(2)A,125/250VAC μ 25T125 UL: 10.1A, 1/4HP 125/250VAC Note: 250gf/Only with "OF "over "250gf"
	12	ENEC: 12(6)A,125/250VAC μ 40T125 UL: 12A, 125/250VAC Note: 350gf/Only with 350gf OF
Operating Frequency	Electrical	10-30 cycles/minute
Operating Frequency	Mechanical	120 cycles/minute
Contact Resistance (Initiative )		100mΩ Max (without wire type)
Insulation Resistance (at 500VDC)		100MΩ Min
Dielectric Strength		AC 1,000RMS (50-60Hz)
Storage Temperature		-25℃~+125℃
Storage Humidity		85% RHMax
Service Life	Electrical	10,000-50,000 cycles (Depend on part No.)
Service Life	Mechanical	1,000,000 cycles
