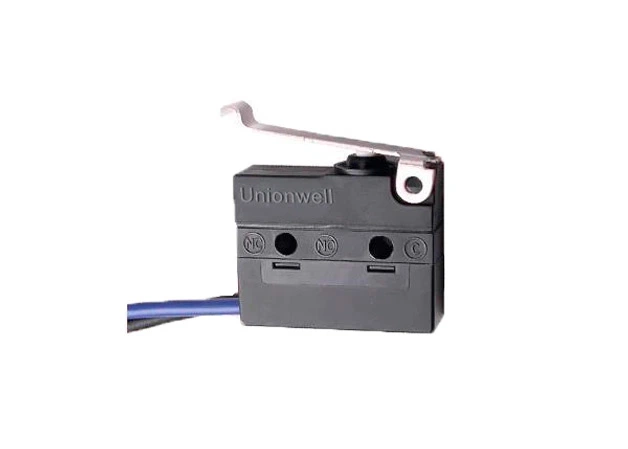

Miniature Micro Swtich IP67
Miniature Micro Swtich IP67
Miniature Micro Swtich IP67
Miniature Micro Swtich IP67

Miniature Micro Swtich IP67

  • Place of Origin: Guangdong, China (Mainland)

  • Brand Name: Unionwell

  • Model Number: G905-200F07W3-40

  • Terminal Type: Wires Leads to Side

  • Circuit Code: SPST-NO

  • Lever Type: Small Simulated Roller Lever

Contact Us

Specifications of Miniature Micro Swtich IP67

RatingP10.1A 125/250VAC 48VDC 5E4 Gold Plated Contact Optional
05UL: 5A 125/250VAC
ENEC: 6A 125/125 1E4; 3A 125/250VAC 30VDC 25T120 μ 5E4
Operating FrequencyElectrical10~30 cycles/min
Mechanical120 cycles/min
Contact Resistance (Initiative)100mΩ Max (lt depends on the wire length for the type with wire)
Insulation Resistance (at 500VDC)100mΩ Min
Dielectric StrengthAC 1,000V RMS(50-60Hz)
Storage Temperature-25℃~+120℃
Storage Humidity85% RH Max.
Service LifeElectrical10,000~100,000 cycles (Depend on P/N)
Mechanical500,000 cycles
