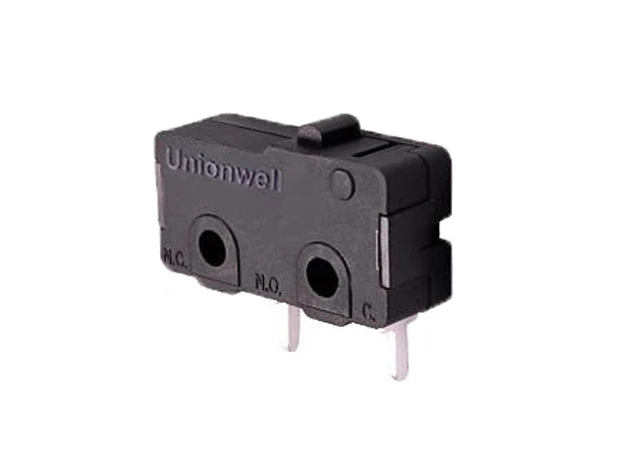

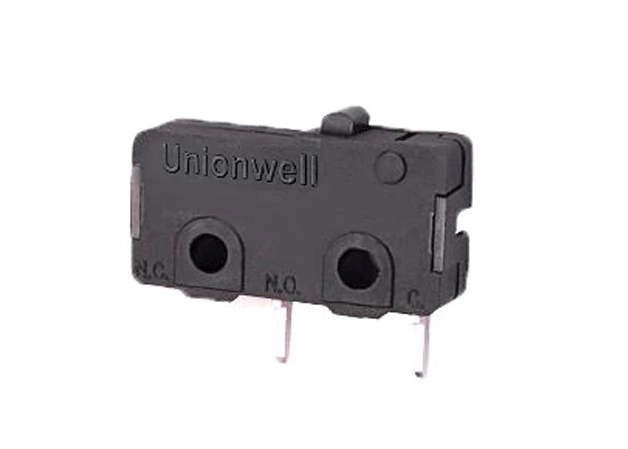

Name: Subminiature Micro Switch Straight PCB Terminals
Brand: Guangzhou Unionwell Sensing & Control Technology Co., Ltd.

Description of Subminiature Micro Switch Straight PCB Terminals

In industrial control systems, microswitches are used for detecting the presence or absence of an object, controlling the movement of machinery, and providing feedback to the system. They are reliable and durable, making them ideal for use in harsh environments.

Product Quick Details of Subminiature Micro Switch Straight PCB Terminals

Place of Origin: Guangdong, China (Mainland)
Brand Name: Unionwell
Model Number: G605-250P00C-D5
Terminal Type: Straight PCB Terminals
Circuit Code: SPST-NO
Lever Type: No Lever Pin Plunger
Company Assurance System: ISO9001 & IATF16949

Specifications of Subminiature Micro Switch Straight PCB Terminals

Rating		P1	ENEC/CQC: 0.1A 125/250VAC 0.1A48VDC 5E4 25T125 UL: 0.1A 125/250VAC 0.1A48VDC Gold Plated Contact Optional


		5	ENEC/CQC: 5(3)A 125/250VAC 5A 125/250VAC 5A30VDC 25T120μ 5E4 UL: 5A125/250VAC 1/8HP 125/250VAC 5A30VDC

		051/052	ENEC/CQC: 5A 125/250VAC 25T120μ 5E4 UL: 5A 125/250VAC 1/8HP 125/250VAC

		10/101	ENEC/CQC: 10(2)A 125/250VAC 25T120μ 5E4 UL: 10.1A125/250VAC 1/4HP 125/250VAC 10A 30VDC Note: Only with"OF" over"250gf"


		12	ENEC/CQC: 12(6)A 125/250VAC 40T125μ 1E4 UL: 12A 125/250VAC Note: Only with 350gf OF


Operating Frequency		Electrical	10~30 cycles/min
		Mechanical	120 cycles/min
Contact Resistance (Initiative)			100mΩ Max.
Insulation Resistance (at 500VDC)			100MΩ Min.
Dielectric Strength	Between Terminals		1,000VAC 50~60Hz for 1Min.
	Between Terminals		1,500VAC 50~60Hz for 1 Min.
	and Housing
Operating Temperature			-25℃~+125C
Operating Humidity			85%RH Max.
Service Life		Electrical	10,000~50,000 cycles (Depend on P/N)
		Mechanical	1,000,000 cycles
