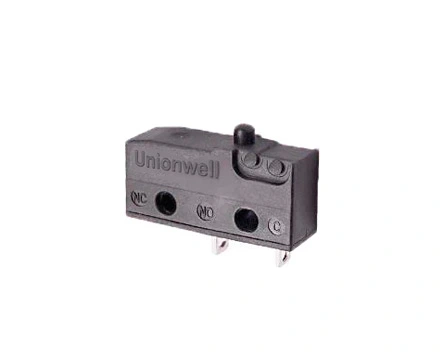

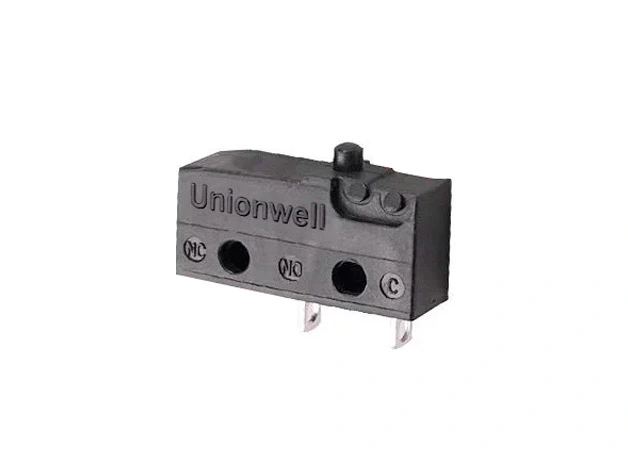

Dustproof Subminiature Switch Solder Terminals
Dustproof Subminiature Switch Solder Terminals
Dustproof Subminiature Switch Solder Terminals
Dustproof Subminiature Switch Solder Terminals

Dustproof Subminiature Switch Solder Terminals

  • Place of Origin: Guangdong, China (Mainland)

  • Brand Name: Unionwell

  • Model Number: G9105-250S00D3

  • Terminal Type: Solder Terminals

  • Circuit Code: SPST-N

  • Lever Type: No Lever Pin Plunger

  • ISO9001 & IATF16949 & ISO14001 Quality System and Environmental System Certification

Contact Us

Product Features of Dustproof Subminiature Switch Solder Terminals

  • Dust and Water Proof (IP67) Design

  • Small Compact Size

  • Long Life, High Reliability

  • Variety of Terminals and Levers

  • Wide Range Operating Force

  • Widely used in Auto Control, Appliance and Other Industry Control


Specifications of Dustproof Subminiature Switch Solder Terminals

RatingP10.1A 125/250VAC 48VDC Gold Plated Contact Optional
05UL: 5A 125/250VAC
ENEC: 6A 125/250 1E4; 3A 125
250VAC 30VDC 5E4 μ25T120
Operating FrequencyElectrical10~30 cycles/min
Mechanical120 cycles/min
Contact Resistance (Initiative)100mΩ Max (lt depends on the wire length for the type with wire)
Insulation Resistance (at 500VDC)100mΩ Min
Dielectric StrengthAC 1,000V RMS(50-60Hz)
Storage Temperature-25℃~+120℃
Storage Humidity85% RH Max.
Service LifeElectrical10,000 cycles (Depend on part No.)
Mechanical500,000 cycles
