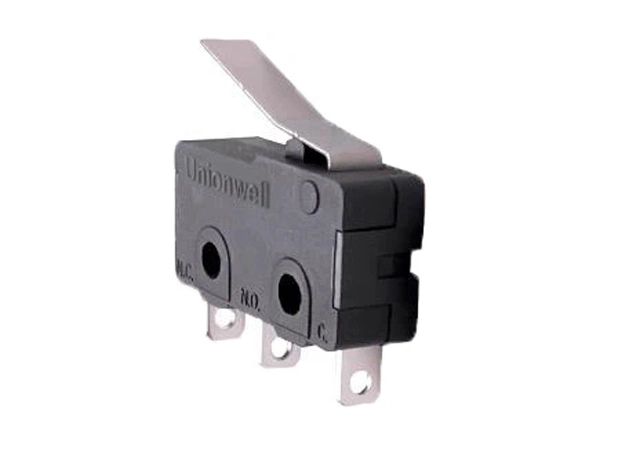

Name: Miniature Micro Switches With Solder Terminals G605
Brand: Guangzhou Unionwell Sensing & Control Technology Co., Ltd.

Description of Miniature Micro Switches With Solder Terminals G605

Unionwell's Miniature Micro Switches with Solder Terminals offer compact reliability for diverse electronic applications. These precision-engineered components ensure seamless performance with easy integration via solder terminals. From automotive to consumer electronics, they provide precise control in tight spaces, guaranteeing uninterrupted functionality. Unionwell's commitment to excellence ensures each switch meets stringent quality standards, empowering your systems with dependable operation.

Products Quick Description of Miniature Micro Switches With Solder Terminals G605

Place of Origin: Guangdong, China (Mainland)
Brand Name: Unionwell
Model Number: G605-150S37A-23
Terminal Type: solder Terminals
Circuit code: SPDT
Lever Type: #37 lever
Safety Certificates: Products are safety approved by global main market.

Specifications of Miniature Micro Switches With Solder Terminals G605

Rating	P1/P11/P12	ENEC: 0.1A,125/250V 48VDC 5EA UL: 0.1A,125/250V 48VDC Gold Plated Contact Optional
	05/051/052	ENEC: 5A,125/250VAC UL: 5A, 1/8HP 125/250VAC
	10/101	ENEC: 10(2)A,125/250VAC U 25T125 UL: 10.1A, 1/4HP 125/250VAC Note: 250gf/Only with "OF "over "250gf"
	12	ENEC: 12(6)A,125/250VACU40T125 UL: 12A, 125/250VAC Note:350gf/Only with 350gf OF
Operating Frequency	Electrical	10-30 cycles/minute
Operating Frequency	Mechanical	120 cycles/minute
Contact Resistance (Initiative )		100mΩ Max (without wire type)
Insulation Resistance (at 500VDC)		100mΩ Min
Dielectric Strength		AC 1,000RMS(50-60HZ)
Storage Temperature		-25℃~+125℃
Storage Humidity		85%RH Max
Service Life	Electrical	10,000-50,000 cycles (Depend on part No.)
Service Life	Mechanical	1,000,000 cycles
