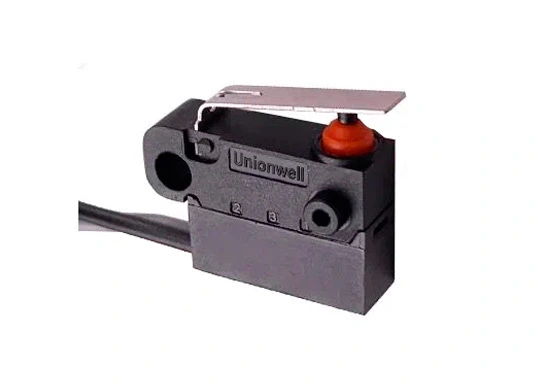

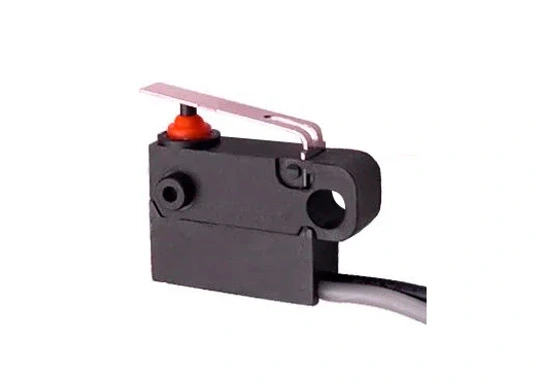

Subminiature Waterproof Micro Switch Straight Leaf Lever
Subminiature Waterproof Micro Switch Straight Leaf Lever
Subminiature Waterproof Micro Switch Straight Leaf Lever
Subminiature Waterproof Micro Switch Straight Leaf Lever

Subminiature Waterproof Micro Switch Straight Leaf Lever

  • Place of Origin: Guangdong, China (Mainland)

  • Brand Name: Unionwell

  • Model Number: G303-130F02C7-FA150U

  • Rating: 0.1A 125/250VAC; 3A 12VDC; 0.1A 48VDC, μ 1E5.

  • Terminal: Molded Lead Wires on Right Side

  • Circuit Code: SPST-NO

  • Lever Type: Straight Leaf Lever

Contact Us

Product Features of Subminiature Waterproof Micro Switch Straight Leaf Lever

  • Deigned For Water and Dust Tight (IP67)

  • Small Compact Size

  • Global Safety Approvals

  • Long life and High Reliability

  • Variety of Lever

  • Wide Range of Wiring Terminals

  • Widely used in Automotive Electronics, Appliance control, Industrial Control etc


Specifications of Subminiature Waterproof Micro Switch Straight Leaf Lever

Rating0.1A, 125/250VAC; 3A/12VDC; 0.1A/48VDC μ1E5
Operating FrequencyElectrical0.1-120 cycles/minute; 3-10~30 cycles/minute
Mechanical120 cycles/minute
Contact Resistance (Initiative)100mΩ Max.(without wire type)
Insulation Resistance (at 500VDC)100mΩ Min.
Vibration Durability10~55Hz, move 0.75mm(p-p)
Dielectric Strength500VAC (50~60Hz)
Operating Temperature-40℃~+85℃
Operating Humidity85% RH Max
Service LifeElectricalMin.100,000 cycles(Depend on part NO.)
MechanicalMin.500,000 cycles
