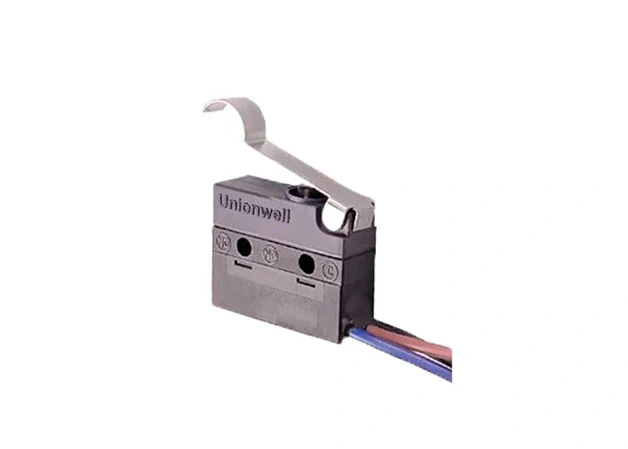

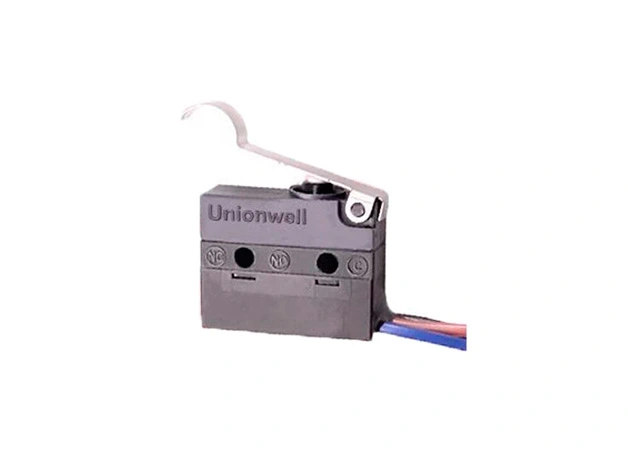

Push To Break Switch
Push To Break Switch
Push To Break Switch
Push To Break Switch

Push To Break Switch

  • Place of Origin: Guangdong, China (Mainland)

  • Model Number: G905-300G05W1-T169U

  • Terminal Type: Wires Leads to Side (500mm) (Plunger Side)

  • Circuit Code: SPST

  • Lever Type: Small Simulated Roller 18.9mm

  • Construction: Water Tight IP67 with Lead Wires

Descriptions of Push To Break Switch

Micro Switches are used for many different building, automation and security applications. Some examples of these applications are as follows: Push buttons for alarms and call points – micro switches are used as the buttons within fire alarms, emergency stop controls, and emergency door releases. These devices are designed to be pressed in an emergency to activate an alarm manually.


Specifications of Push To Break Switch

RatingP10.1A 125/250VAC 48VDC 5E4 Gold Plated Contact Optional
05UL: 5A 125/250VAC
ENEC: 6A 125/125VAC 1E4; 3A 125/250VAC 30VDC 25T120 μ 5E4
Operating FrequencyElectrical10~30 cycles/min
Mechanical120 cycles/min
Contact Resistance (Initiative)100mΩ Max (lt depends on the wire length for the type with wire)
Insulation Resistance (at 500VDC)100mΩ Min
Dielectric StrengthAC 1,000V RMS(50-60Hz)
Storage Temperature-25℃~+120℃
Storage Humidity85% RH Max.
Service LifeElectrical10,000~100,000 cycles (Depend on P/N)
Mechanical500,000 cycles
