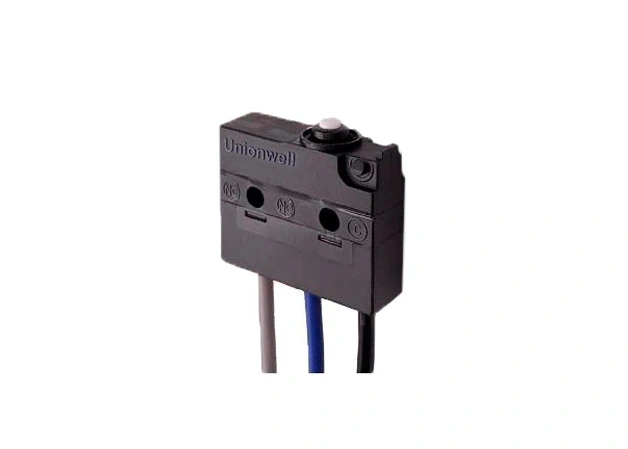

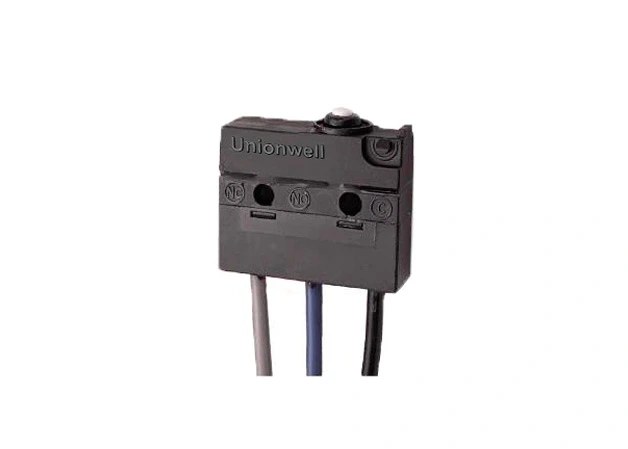

Micro Switch With Pin Plunger 200GF IP67 G905
Micro Switch With Pin Plunger 200GF IP67
Micro Switch With Pin Plunger 200GF IP67
Micro Switch With Pin Plunger 200GF IP67

Micro Switch With Pin Plunger 200GF IP67 G905

  • Place of Origin: Guangdong, China (Mainland)

  • Brand Name: Unionwell

  • Model Number: G905-200E00W1-150

  • Terminal Type: Wires Leads to Bottom

  • Circuit Code: SPDT

  • Lever Type: Spherical Pin Plunger

Contact Us

Specifications of Micro Switch With Pin Plunger 200GF IP67

RatingP10.1A 125/250VAC 48VDC 5E4 Gold Plated Contact Optional
05UL: 5A 125/250VAC
ENEC: 6A 125/125 1E4; 3A 125/250VAC 30VDC 25T120 μ 5E4
Operating FrequencyElectrical10~30 cycles/min
Mechanical120 cycles/min
Contact Resistance (Initiative)100mΩ Max (lt depends on the wire length for the type with wire)
Insulation Resistance (at 500VDC)100mΩ Min
Dielectric StrengthAC 1,000V RMS(50-60Hz)
Storage Temperature-25℃~+120℃
Storage Humidity85% RH Max.
Service LifeElectrical10,000~100,000 cycles (Depend on P/N)
Mechanical500,000 cycles
