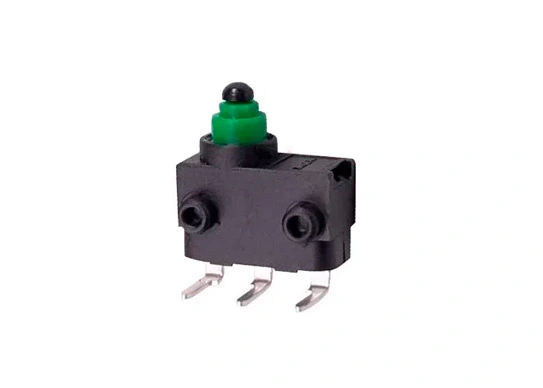

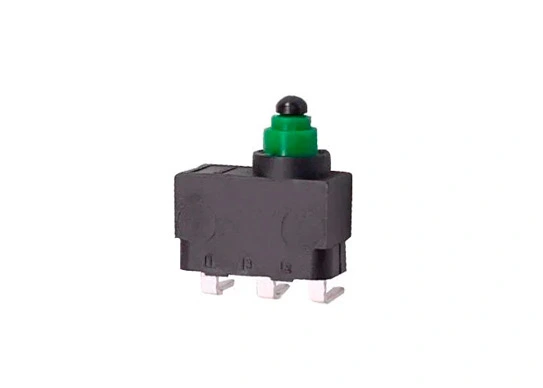

Waterproof Micro Switch 12V PCB Terminals
Waterproof Micro Switch 12V PCB Terminals
Waterproof Micro Switch 12V PCB Terminals
Waterproof Micro Switch 12V PCB Terminals

Waterproof Micro Switch 12V PCB Terminals

  • Place of Origin: Guangdong, China (Mainland)

  • Brand Name: Unionwell

  • Model Number: G303A-180L00A22CU

  • Terminals: Left Side PCB Terminals

  • Rating: 0.1A, 125/250VAC; 3A/12VDC; 0.1A/48VDC, μ 1E5

  • Circuit Code: SPST-NO

  • Lever Type: No Lever Pin Plunger

Contact Us

The G303A-180L00A22CU waterproof micro switch with PCB terminals is safety-approved by the leading global market. Our factory has been certified with ISO9001 and ISO 14001 quality assurance systems.


Specifications of Waterproof Micro Switch 12V PCB Terminals

Rating0.1A/125VAC; 3A12VDC; 0.1A/250VAC; 0.1A/48VDC; μ1E5
Operating FrequencyElectrical0.1A-120 cycles/min; 3A-10-30 cycles/min
Mechanical120 cycles/min
Contact Resistance (Initiative)100mΩ Max.
Insulation Resistance (at 500VDC)100mΩ Min.
Vibration Durability10~55Hz, move 0.75mm(p-p)
Dielectric Strength500VAC (50~60Hz)
Operating Temperature-40℃~+85℃
Operating Humidity85% RH Max
Service LifeElectricalMin.100,000 cycles
MechanicalMin.500,000 cycles
