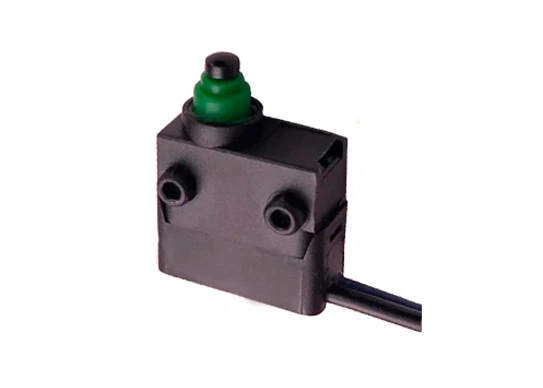

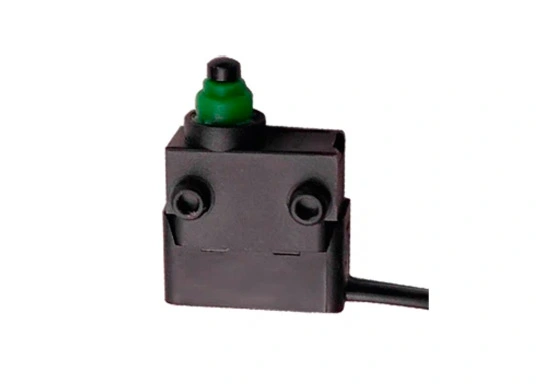

Waterproof Micro Switch 130GF SPST-NO
Waterproof Micro Switch 130GF SPST-NO
Waterproof Micro Switch 130GF SPST-NO
Waterproof Micro Switch 130GF SPST-NO

Waterproof Micro Switch 130GF SPST-NO

  • Place of Origin: Guangdong, China (Mainland)

  • Brand Name: Unionwell

  • Model Number: G303-130F00C14-FA400-T191

  • Terminal: Molded Lead Wires on Right Side

  • Circuit Code: SPST-NO

  • Company Assurance System: ISO9001 & IATF16949

Contact Us

Specifications of Waterproof Micro Switch 130GF SPST-NO

Rating0.1A, 125/250VAC; 3A/12VDC; 0.1A/48VDC μ 1E5
Operating FrequencyElectrical0.1A, 120 cycles/min 3A, 10~30 cycles/min
Mechanical120 cycles/minute
Contact Resistance (Initiative)100mΩ Max.(without wire type)
Insulation Resistance (at 500VDC)100mΩ Min.
Vibration Durability10~55Hz, move 0.75mm(p-p)
Dielectric Strength500VAC (50~60Hz)
Operating Temperature-40℃~+85℃
Operating Humidity85% RH Max
Service LifeElectricalMin.100,000 cycles(Depend on part NO.)
MechanicalMin.500,000 cycles
