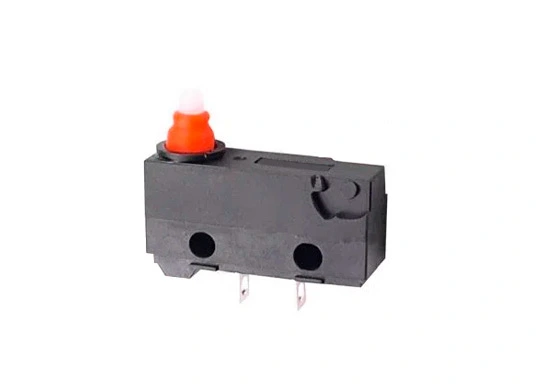

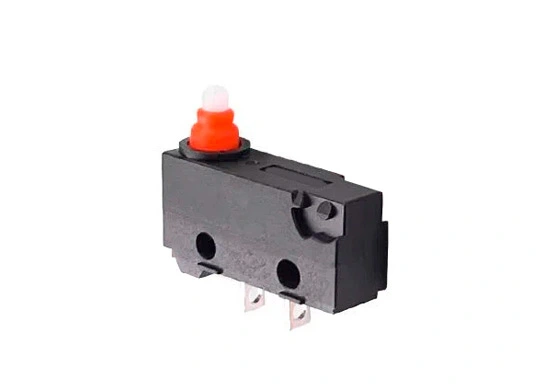

Miniature Micro Switch 200GF With Pin Plunger
Miniature Micro Switch 200GF With Pin Plunger
Miniature Micro Switch 200GF With Pin Plunger
Miniature Micro Switch 200GF With Pin Plunger

Miniature Micro Switch 200GF With Pin Plunger

  • Place of Origin: Guangdong, China (Mainland)

  • Brand Name: Unionwell

  • Model Number: G9A05-200S00CU

  • TerminalType: Solder Terminals

  • Lever Type: Spherical Pin Plunger

  • Circuit Code: SPST-NO

  • Company Assurance System: ISO9001 & IATF16949

  • Dust and Water Proof (IP67)Design

Contact Us

Specifications of Miniature Micro Switch 200GF With Pin Plunger

Rating

P1

0.1A 125/250VAC 30VDC

Gold Plated Contact Optional

05

UL: 5A 125/250VAC

ENEC: 6A 125/250VAC 30VDC 5E4 µ 25T120

Operating Frequency

Electrical

10~30 cycles/minute

Mechanical

120 cycles/minute

Contact Resistance (Initiative)

100mΩMax (It depends on the wire length for the type with wire)

Insulation Resistance (at 500VDC)

100mΩ Min

Dielectric Strength

AC1,000V RMS (50~60Hz)

Storage Temperature

-40°C~+85°C

Storage Humidity

95%RH Max

Service Life

Electrical

50,000 cycles (Depend on part No.)

Mechanical

200,000 cycles


Products
Contact with Us
Tel:
+86-20-87713867
E-mail:
inquiry@unionwellgz.com
Add:
RM1311, Renfeng Building, No. 490, Tianhe Road, Tianhe District, Guangzhou, Guangdong, China, 510630.
Unionwell
Switches are us, switch to us. Find quality micro switches at Unionwell

Popular Waterproof Micro Switch

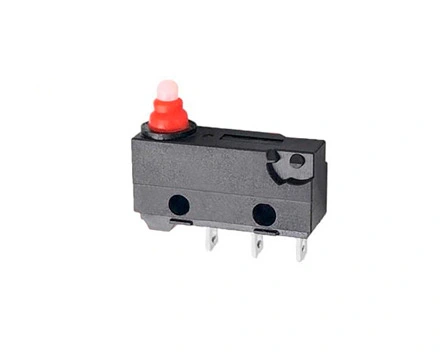

Sealed Miniature Micro Switch SPST-NO IP67
Sealed Miniature Micro Switch SPST-NO IP67
Sealed Mini Micro Switch Waterproof Shell 200GF
Sealed Mini Micro Switch Waterproof Shell 200GF

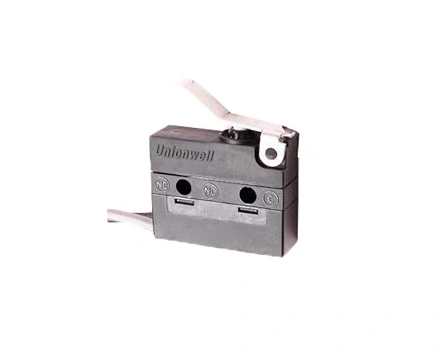

Sealed Mini Micro Switch For Game Controller G9
Sealed Mini Micro Switch For Game Controller G9

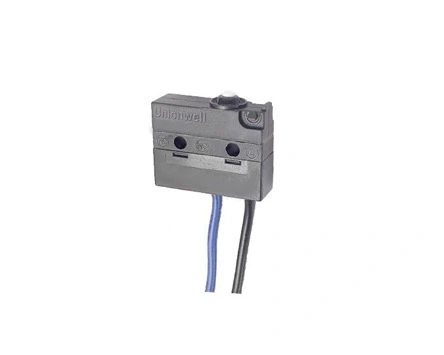

Sealed Mini Micro Switch With PCB Terminals
