Name: DPDT Micro Switch 1NO+1NC Contact Size G6
Brand: Guangzhou Unionwell Sensing & Control Technology Co., Ltd.

Description of DPDT Micro Switch 1NO+1NC Contact Size G6

The DPDT (Double Pole Double Throw) Micro Switch G6 features 1 Normally Open (NO) and 1 Normally Closed (NC) contact configuration. It is designed for precise control and reliability in various applications, offering versatility in electrical circuits where dual switching functions are required.

Quick Details of DPDT Micro Switch 1NO+1NC Contact Size G6

Place of Origin: Guangdong, China (Mainland)
Brand Name: Unionwell
Model Number: G606-200R12EK

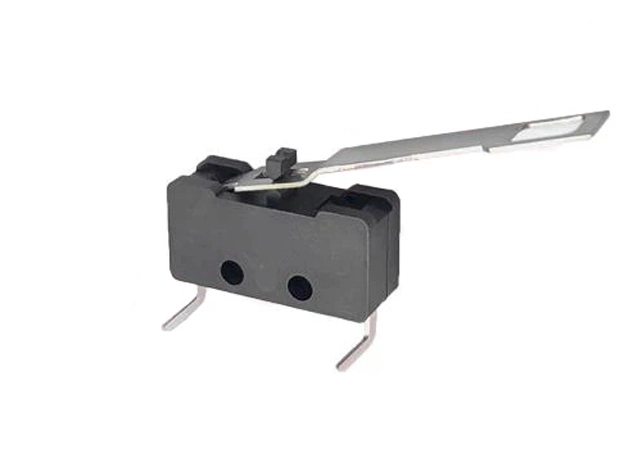

Terminal Style: Right side PCB Terminal
Circuit code: DPDT-NO

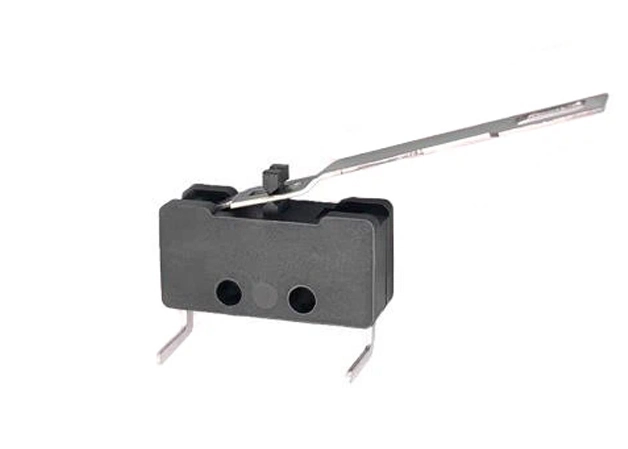

Lever Type: Straight Lever(with hole)

Features of of DPDT Micro Switch 1NO+1NC Contact Size G6

Contact size and tight configuration.
Long life,High reliability.
Variety Double-Break Type
DPDT double-break type.
Widely used in industry control etc.

Application of of DPDT Micro Switch 1NO+1NC Contact Size G6

Float
Sewage Pump

Typical Specifications of of DPDT Micro Switch 1NO+1NC Contact Size G6

Rating	06	0.5A 125/250VDC
Rating	06	0.5A/6A 125/250VAC,1/4HP 25
Operating Frequency	Electrical	10-30 cycles/minute
Operating Frequency	Mechanical	120 cycles/minute
Contact Resistance(initiative)		30-100 mΩ Max
Insulation Resistance		100 mΩ Max (at 500VDC)
Dielectric Strength		AC 750V RMS ( 50-60 Hz)
Storage Temperature		-40℃~+125℃
Storage Humidity		85%RH Max
Service Life	Electrical	50,000-100,000 cycles
Service Life	Mechanical	500,000 cycles
Unit Weight		1.96 g
