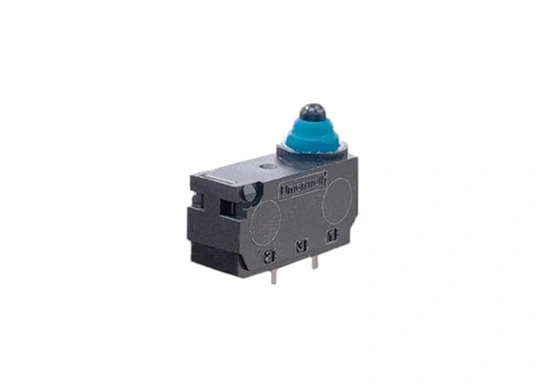

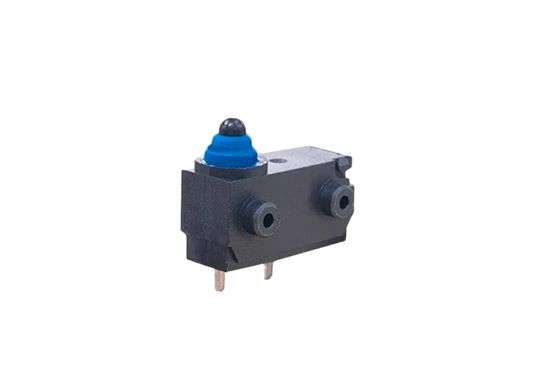

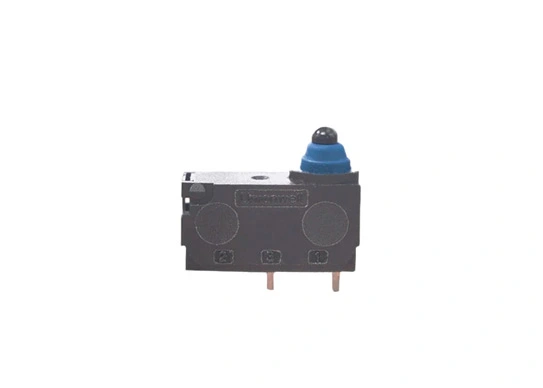

Straight PCB Terminals Micro Switch G303

The Unionwell G303-130P00C49J-T370 Micro Switch combines precision engineering with a straight PCB terminal design, delivering seamless integration into compact electronic systems. With an SPST-NO (Single Pole Single Throw, Normally Open) circuit and a maximum operating force of 130gf, this switch is optimized for reliable, direct contact in space-constrained applications.

Streamlined PCB Integration

Featuring 0.6mm width straight PCB terminals, the G303 ensures easy soldering and secure mounting on printed circuit boards, reducing assembly time and enhancing design efficiency. Its compact size makes it ideal for applications where space is limited, while the IP67 rating provides robust protection against dust and water ingress—perfect for demanding environments.

Performance & Compliance

• Electrical Ratings: Supports 0.1A at 125/250VAC, 3A at 12VDC, 0.1A at 48VDC, and μ1E5, accommodating a wide range of voltage and current requirements.

• Longevity: Engineered for 500,000 mechanical cycles and 100,000 electrical cycles (dependent on part number), minimizing downtime and replacement costs.

• Environmental Resilience: Operates reliably from -40°C to +85°C and withstands up to 85% relative humidity, ensuring consistent performance in extreme temperatures and humid conditions.




Ideal Applications

• Automotive Electronics: Seat adjustment systems, door sensors, and compact safety switches in vehicles.

• Household Appliances: Small kitchen gadgets, power tools, and smart home devices requiring space-efficient switching solutions.

• Industrial Controls: Robotics, machinery limit switches, and automation equipment that demand durable, compliant components.
