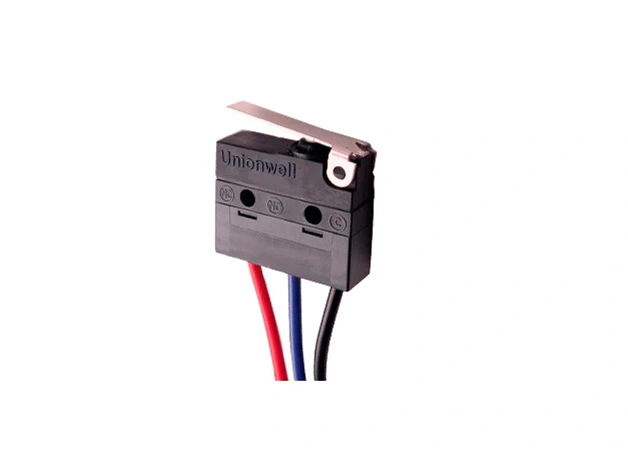

Sealed Micro Switch 200GF IP67
Sealed Micro Switch 200GF IP67
Sealed Micro Switch 200GF IP67

Sealed Micro Switch 200GF IP67

  • Place of Origin: Guangdong, China (Mainland)

  • Brand Name: Unionwell

  • Model Number: G905-200E01W1-T130

  • Terminal Type: Wires Leads to Bottom

  • Circuit Code: SPDT

  • Lever Type: Short Straight Lever

Contact Us

Descriptions of Sealed Micro Switch 200GF IP67

Miniature micro switches are highly reliable, providing precise and consistent operation. They feature a low actuation force, resulting in swift response times and minimal wear and tear. Moreover, they require minimal maintenance, making them a cost-effective choice for various applications.


Specifications of Sealed Micro Switch 200GF IP67

RatingP10.1A 125/250VAC 48VDC 5E4 Gold Plated Contact Optional
05UL: 5A 125/250VAC
ENEC: 6A 125/125 1E4; 3A 125/250VAC 30VDC 25T120 μ 5E4
Operating FrequencyElectrical10~30 cycles/min
Mechanical120 cycles/min
Contact Resistance (Initiative)100mΩ Max (lt depends on the wire length for the type with wire)
Insulation Resistance (at 500VDC)100mΩ Min
Dielectric StrengthAC 1,000V RMS(50-60Hz)
Storage Temperature-25℃~+120℃
Storage Humidity85% RH Max.
Service LifeElectrical10,000~100,00 cycles (Depend on part P/N)
Mechanical500,000 cycles
