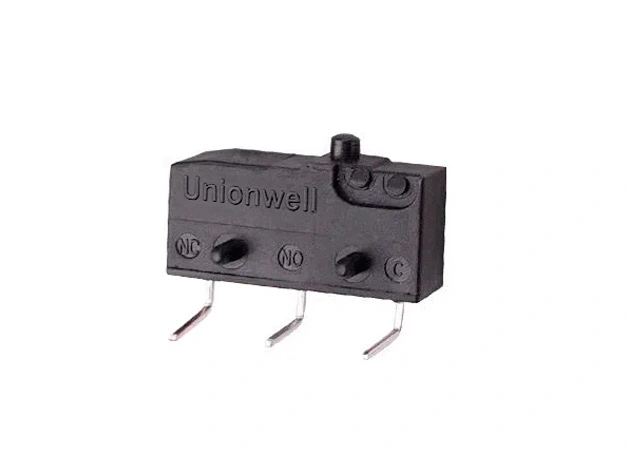

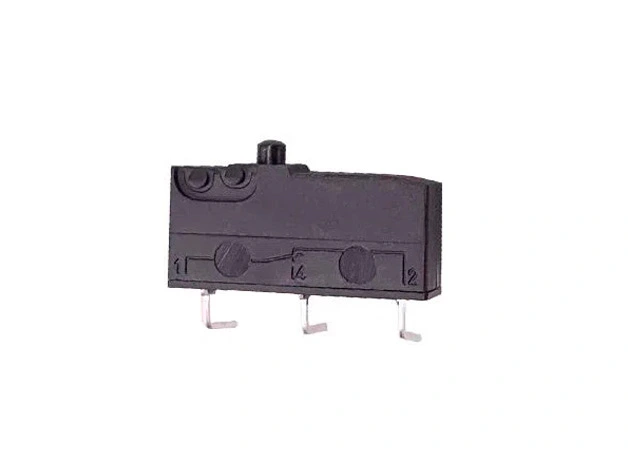

Dustproof Micro Switch Right Side PCB Terminals
Dustproof Micro Switch Right Side PCB Terminals
Dustproof Micro Switch Right Side PCB Terminals
Dustproof Micro Switch Right Side PCB Terminals

Dustproof Micro Switch Right Side PCB Terminals

  • Place of Origin: Guangdong, China (Mainland)

  • Brand Name: Unionwell

  • Model Number: G9105-250R00F1

  • Terminal Type: Right side PCB Terminals

  • Circuit Code: SPDT

  • Lever Type: No Lever Pin Plunger

Contact Us

Specifications of Dustproof Micro Switch Right Side PCB Terminals

RatingP10.1A 125/250VAC 48VDC Gold Plated Contact Optional
05UL: 5A 125/250VAC
ENEC: 6A 125/125VAC 1E4; 3A 125/250VAC 30VDC 5E4 μ25T120
Operating FrequencyElectrical10~30 cycles/min
Mechanical120 cycles/min
Contact Resistance (Initiative)100mΩ Max (lt depends on the wire length for the type with wire)
Insulation Resistance (at 500VDC)100mΩ Min
Dielectric StrengthAC 1,000V RMS(50-60Hz)
Storage Temperature-25℃~+120℃
Storage Humidity85% RH Max.
Service LifeElectrical10,000 cycles (Depend on part No.)
Mechanical500,000 cycles


Products
Contact with Us
Tel:
+86-20-87713867
E-mail:
inquiry@unionwellgz.com
Add:
RM1311, Renfeng Building, No. 490, Tianhe Road, Tianhe District, Guangzhou, Guangdong, China, 510630.
Unionwell
Switches are us, switch to us. Find quality micro switches at Unionwell

Popular Mini Micro Switch

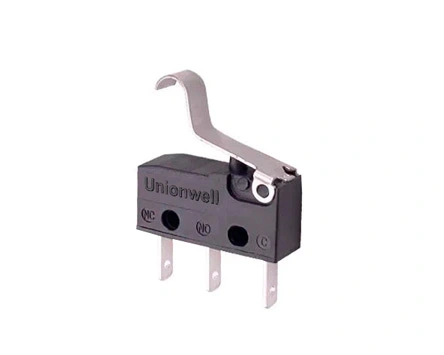

Dustproof Micro Switch SPST-NC 250GF
Dustproof Micro Switch SPST-NC 250GF

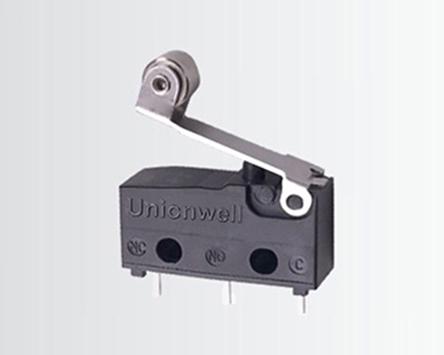

Mini Micro Switch SPDT With Roller Lever
Mini Micro Switch SPDT With Roller Lever

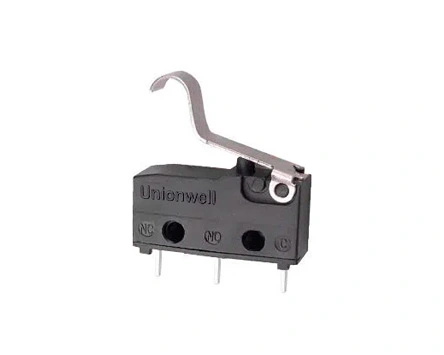

Miniature Switch 300GF Wide PCB Connect
Miniature Switch 300GF Wide PCB Connect

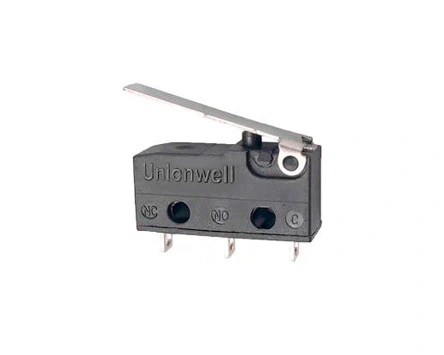

Dustproof Micro Switch With Solder Terminals G9110
