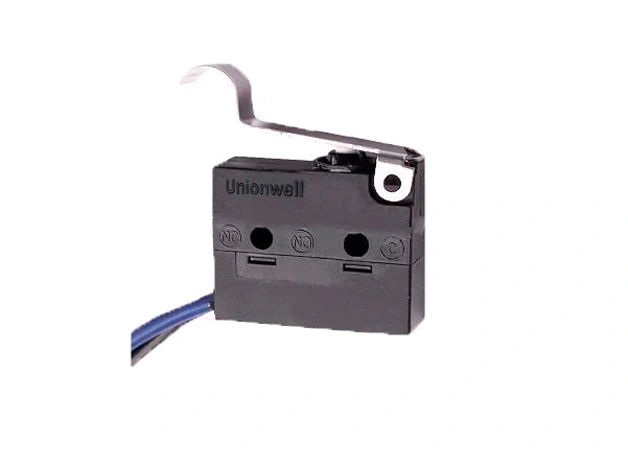

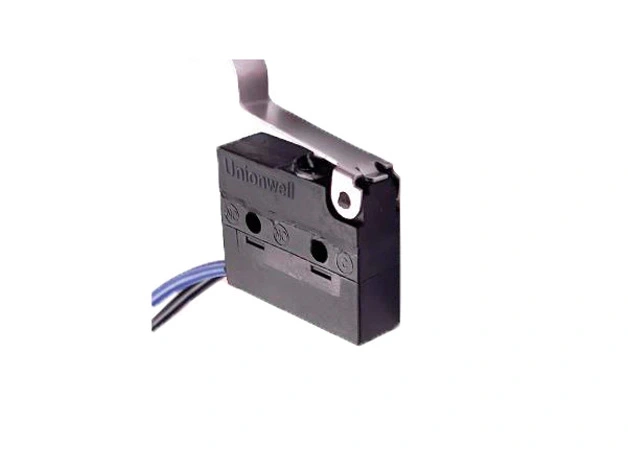

Name: Sealed Micro Switch SPST-NO Wires Lead To Side G905
Brand: Guangzhou Unionwell Sensing & Control Technology Co., Ltd.

Descriptions of Sealed Micro Switch SPST-NO Wires Lead To Side G905

Unionwell introduces the Sealed Micro Switch SPST-NO (Single Pole Single Throw - Normally Open) with Wires Lead To Side, redefining reliability and precision in electronic components. Crafted with meticulous attention to detail and employing cutting-edge sealing technology, this switch ensures seamless integration and dependable performance in various environments. The SPST-NO configuration makes it ideal for applications requiring a normally open contact, providing versatility across industries. Its sealed construction protects against dust, moisture, and other contaminants, ensuring long-term reliability.

With wires lead to the side, this micro switch offers easy installation and secure connections, facilitating seamless integration into electronic systems. Its compact design and robust functionality make it indispensable for precise control and operation.

Despite its small size, the Sealed Micro Switch SPST-NO Wires Lead To Side plays a crucial role in enabling the functionality of countless electronic systems, ensuring smooth operation and uninterrupted performance.

Specifications of Sealed Micro Switch SPST-NO Wires Lead To Side G905

Rating	p1	0.1A 125/250VAC 48VDC/GoldPlated Contact Optional
	05	UL: 5A 125/250VAC ENEC: 6A 125/250 1E4; 3A 125/250VAC 30VDC 5E4 µ25T120
Operating Frequency	Electrical	10~30cycles/minute
	Mechanical	120cycles/minute
Contact Resistance (Initiative)		100mΩ Max/It depends on the wire length for the type with wire
Insulation Resistance (at 500VDC)		100mΩ Min
Dielectric Strength		AC1,000V RMS (50~60Hz)
Storage Temperature		-25°C~+120°C
Storage Humidity		85%RH Max
Service Life	Electrical	10,000cycles/Depend on part No.
	Mechanical	500,000cycles
