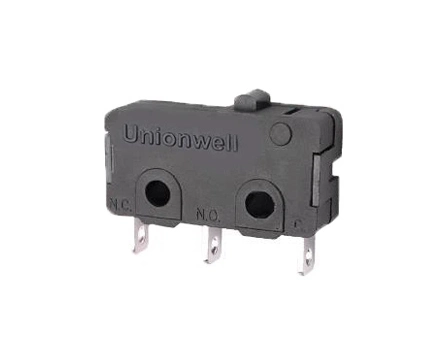

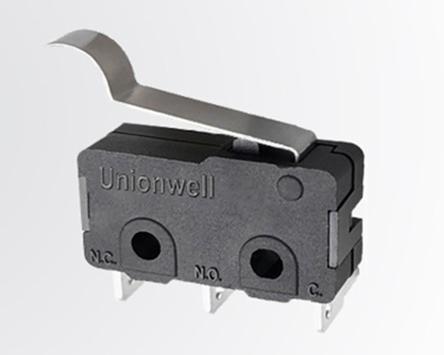

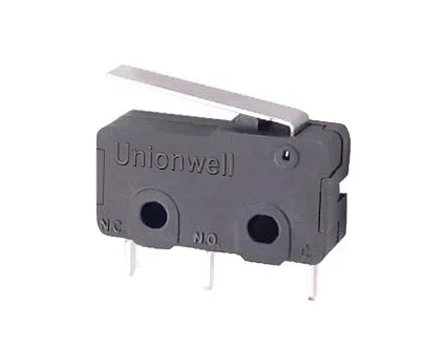

Name: Miniature Micro Switch Customized G6
Brand: Guangzhou Unionwell Sensing & Control Technology Co., Ltd.

Description of Miniature Micro Switch Customized G6

Greetech Electronics takes products quality as company's life since its establishment in 2007. We dedicate to being not only a professionalMiniature Snap Action Switch supplier, but a great supplier with innovation for world well-known brand.

Greetech Electronics takes products quality as company's life since its establishment in 2007.We dedicate to being not only a professional micro switch supplier, but a great supplier with innovation for world well-known brand. At present, there is more than 50 patents recognized by ministry, and these new patents contribute a lot to Greetech sales growth. In 2014, Greetech is approved as High-tech enterprise for its strong R&D competence.

Quick Details of Miniature Micro Switch Customized G6

Place of Origin: Guangdong, China (Mainland)
Brand Name: Unionwell
Model Number:G6P1-150S04A
Terminal Style: solder Terminals
Circuit code: SPDT

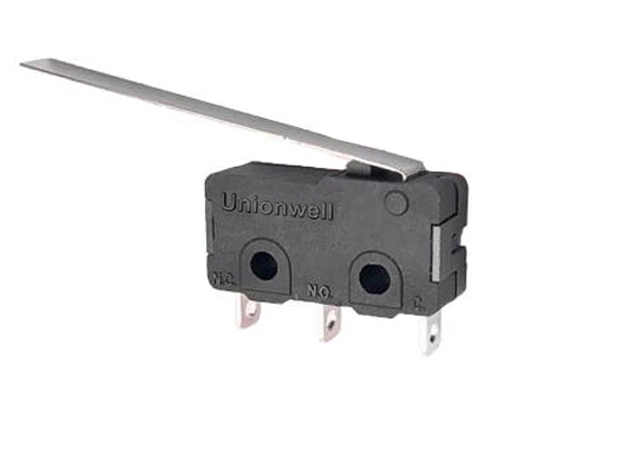

Lever Type:Longer Straight

Parameters of Miniature Micro Switch Customized G6

Rating	P1/P11/P12	ENEC:0.1A,125/250V 48VDC 5EA UL:0.1A,125/250V 48VDC Gold Plated Contact Optional
	05/051/052	ENEC:5A,125/250VAC UL:5A, 1/8HP 125/250VAC
	10/101	ENEC:10(2)A,125/250VAC U 25T125 UL:10.1A, 1/4HP 125/250VAC Note:250gf/Only with "OF "over "250gf"
	12	ENEC:12(6)A,125/250VACU40T125 UL:12A, 125/250VACNote:350gf/Only with 350gf OF
Operating Frequency	Electrical	10-30 cycles/minute
	Mechanical	120 cycles/minute
Contact Resistance(Initiative )		100mΩ Max (without wire type)
Insulation Resistance (at500VDC)		100mΩ Min
Dielectric strength		AC ,1,000RMS(50-60HZ)
Storage Temperature		-25℃~+125℃
Storage Humidity		85%RHMax
Service Life	Electrical	10,000-50,000 /cycles(Depend on part No.)
	Mechanical	1,000,000/cycles
