130GF Max Long Solder Terminals Waterproof Micro Switch G303
130GF Max Long Solder Terminals Waterproof Micro Switch G303
130GF Max Long Solder Terminals Waterproof Micro Switch G303
130GF Max Long Solder Terminals Waterproof Micro Switch G303
130GF Max Long Solder Terminals Waterproof Micro Switch G303

130GF Max Long Solder Terminals Waterproof Micro Switch G303

  • Waterproof & Dustproof: IP67-rated for superior protection against water and dust.

  • Reliable Performance: Engineered to provide stable, secure electrical connections with elongated solder terminals.

  • Compact & Durable: Small size paired with long life and high reliability under challenging conditions.

  • Versatile Application: Ideal for automotive electronics, appliances, and industrial control designs.

  • Global Safety Compliance: Meets international safety standards and features a variety of lever and wiring terminal options.

Contact Us

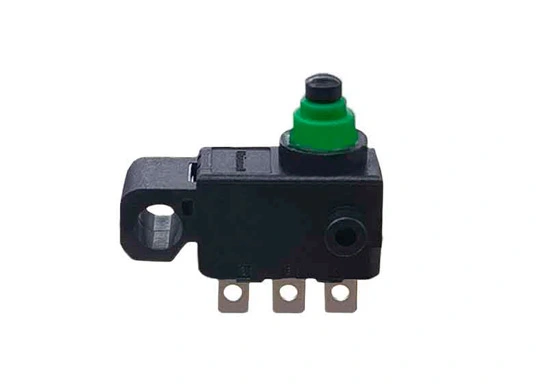

The Unionwell 130gf Max Long Solder Terminals Waterproof Micro Switch G303 (Model: G303-130K00A47U) is a specialized electronic component designed to operate reliably in harsh environments. With its long solder terminals, this micro switch ensures secure and stable electrical connections, making it an excellent choice for applications where continuous performance is critical.


Built with an IP67 rating, the switch offers robust protection against water and dust, making it suitable for use in automotive electronics, household appliances, and industrial control systems. Its compact design, coupled with long service life and high reliability, makes the Unionwell G303 an indispensable part in designs that demand resilient and efficient performance.


Parameters

Rating0.1A, 125/250VAC; 3A/12VDC; 0.1A/48VDC; μ 1E5
Operating FrequencyElectrical0.1A,120 cycles/min 3A,10~30 cycles/min
Mechanical120 cycles/min
Contact Resistance(Initiative)100mΩ Max. (without wire type)
nsulation Resistance (at 500VDC)100MΩ Min
Vibration Durability10~55Hz, move 0.75mm(p-p)
Dielectric Strength500VAC(50~60Hz)
Operating Temperature-40°℃~+85℃
Operating Humidity85%RH   Max
Service LifeElectricalMin.100,000 cycles (Depend on part NO.)
MechanicalMin.500,000 cycles
