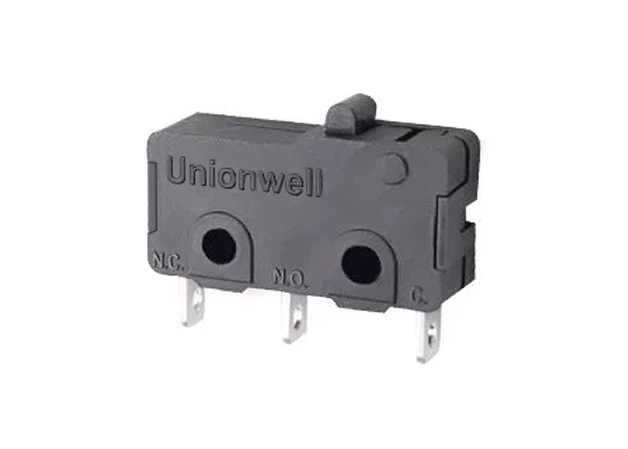

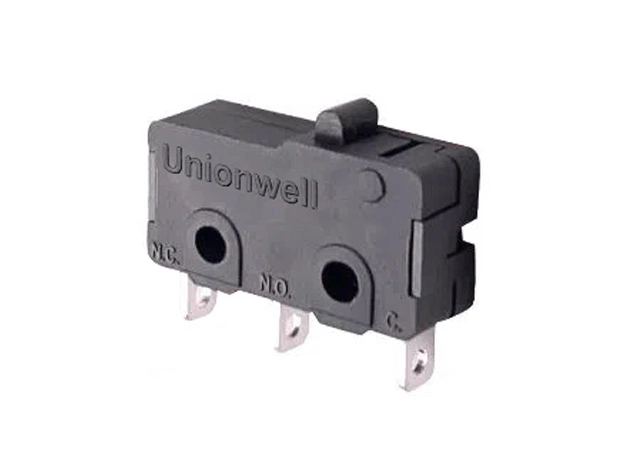

Name: Micro Switch Buttons SPDT No Lever
Brand: Guangzhou Unionwell Sensing & Control Technology Co., Ltd.

Description of Micro Switch Buttons SPDT No Lever

One of the most common styles of switches is the SPDT Mechanical switch. The SPDT stands for Single Pole, Double Throw. As stated, there is a common terminal on the switch where the voltage and current are applied, which can be either directed to the normally open or normally closed terminal. The direction of the current flow is typically directed by a mechanical roller lever that actuates the switch.

Quick Details of Micro Switch Buttons SPDT No Lever

Brand Name: Unionwell
Model Number: G612-250S00A-B13
Terminal Type: Short Terminals
Circuit Code: SPDT
Lever Type: No Lever Pin Plunger
Small Compact Size
Variety of Actuator and Terminals
Global Safety Approvals
Long Life and High Reliability
High Rating to 10(2)A, 1/4HP
Customized Designs
Widely used in Auto Control and Appliance Control

Product Parameters of Micro Switch Buttons SPDT No Lever

Rating	P1/P11/P12	ENEC: 0.1A, 125/250V 48VDC 5EA UL: 0.1A, 125/250V 48VDC Gold Plated Contact Optional
	05/051/052	ENEC: 5A, 125/250VAC UL: 5A, 1/8HP 125/250VAC
	10/101	ENEC: 10(2)A, 125/250VAC U 25T125 UL: 10.1A, 1/4HP 125/250VAC Note: 250gf/Only with "OF "over "250gf"
	12	ENEC: 12(6)A, 125/250VACU40T125 UL: 12A, 125/250VAC Note:350gf/Only with 350gf OF
Operating Frequency	Electrical	10-30 cycles/minute
Operating Frequency	Mechanical	120 cycles/minute
Contact Resistance (Initiative )		100mΩ Max (without wire type)
Insulation Resistance (at 500VDC)		100MΩ Min
Dielectric Strength		AC ,1,000RMS(50-60HZ)
Storage Temperature		-25℃~+125℃
Storage Humidity		85%RH Max
Service Life	Electrical	10,000-50,000 cycles (Depend on part No.)
Service Life	Mechanical	1,000,000 cycles
