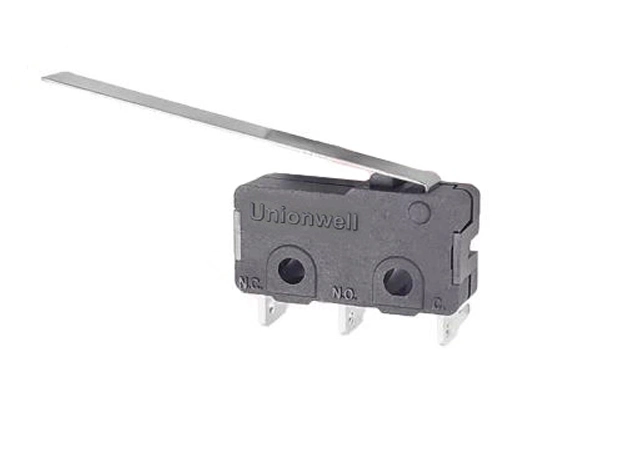

Name: Mini Micro Switch Long Straight Lever G6
Brand: Guangzhou Unionwell Sensing & Control Technology Co., Ltd.

Description of Mini Micro Switch Long Straight Lever G6

The Mini Micro Switch G6, equipped with a long straight lever, is engineered for precise and reliable performance in compact electronic applications. Its small size and robust design make it ideal for environments where space is limited yet dependable switching is crucial. The long straight lever allows for precise actuation, ensuring accurate control and positioning within electronic devices and appliances.

Designed to withstand frequent use, the G6 switch offers durability and longevity. It features a compact footprint that facilitates easy integration into intricate electronic designs without compromising functionality. Whether used in consumer electronics, automotive systems, or industrial machinery, the G6 switch delivers consistent performance and operational efficiency.

The switch's reliable operation is complemented by its ability to maintain performance integrity over extended periods, reducing maintenance requirements and enhancing overall product lifespan. With its combination of compact size, robust construction, and precise actuation capabilities, the Mini Micro Switch G6 is a versatile choice for applications demanding high reliability and space efficiency.

Quick Details of Mini Micro Switch Long Straight Lever G6

Place of Origin: Guangdong, China (Mainland)
Brand Name: Unionwell
Model Number:G605-150L04A-23
Terminal Type: left side PCB Terminals
Circuit code: SPDT
Lever Type: long straight lever

Specifications of Mini Micro Switch Long Straight Lever G6

Rating	P1/P11/P12	ENEC: 0.1A,125/250V 48VDC 5EA UL: 0.1A,125/250V 48VDC Gold Plated Contact Optional
	05/051/052	ENEC: 5A,125/250VAC UL: 5A, 1/8HP 125/250VAC
	10/101	ENEC: 10(2)A,125/250VAC U 25T125 UL: 10.1A, 1/4HP 125/250VAC Note: 250gf/Only with "OF "over "250gf"
	12	ENEC: 12(6)A,125/250VACU40T125 UL: 12A, 125/250VAC Note:350gf/Only with 350gf OF
Operating Frequency	Electrical	10-30 cycles/minute
Operating Frequency	Mechanical	120 cycles/minute
Contact Resistance (Initiative )		100mΩ Max (without wire type)
Insulation Resistance (at 500VDC)		100mΩ Min
Dielectric Strength		AC 1,000RMS(50-60HZ)
Storage Temperature		-25℃~+125℃
Storage Humidity		85%RH Max
Service Life	Electrical	10,000-50,000 cycles (Depend on part No.)
Service Life	Mechanical	1,000,000 cycles
