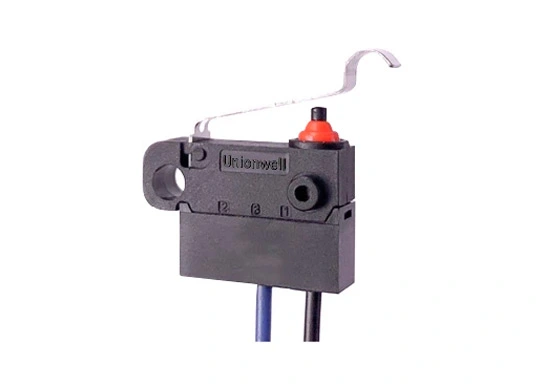

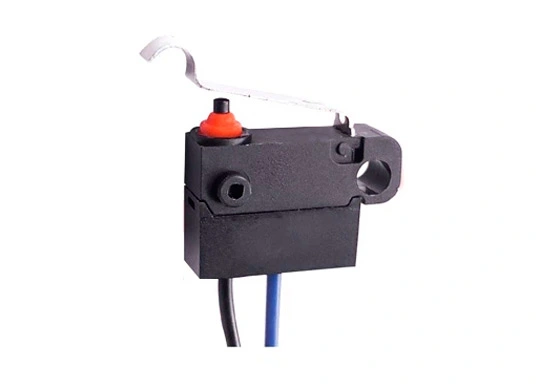

G303 Micro Switch – Simulated Roller Lever, SPST-NO
Micro Switch Simulated Roller Lever SPST-NO
Micro Switch Simulated Roller Lever SPST-NO
Micro Switch Simulated Roller Lever SPST-NO

G303 Micro Switch – Simulated Roller Lever, SPST-NO

  • Model Number: G303-130E05C7

  • Terminal Type: Molded Lead Wires Downwards

  • Lever Type: Simulated Roller Lever

  • Circuit Code: SPST-NO (Single-Pole Single-Throw, Normally Open)

  • Electrical Rating: 0.1A 125/250VAC; 3A 12VDC; 0.1A 48VDC μ 1E5

  • Compact design with high reliability

  • Widely used in automotive electronics, appliance control, and industrial control

Contact Us

This G303 Micro Switch with a simulated roller lever and SPST-NO circuit configuration is designed for high-precision applications in automotive electronics, appliance control, and industrial control systems. Featuring global safety approvals, a compact size, and long service life, this switch ensures high reliability and durability. The molded lead wires downwards design makes installation easy while providing secure and stable connections.

This micro switch is built to withstand rigorous operating conditions, including wide temperature tolerance (-40°C to +85°C) and high vibration durability (10~55Hz, 0.75mm movement), making it suitable for demanding industrial and commercial applications.


Parameters:

Rating0.1A, 125/250VAC; 3A/12VDC; 0.1A/48VDC; μ 1E5
Operating FrequencyElectrical0.1-120 cycles/minute; 3-10~30 cycles/minute
Mechanical120 cycles/minute
Contact Resistance(Initiative)100mΩ Max (without wire type)
Insulation Resistance (at 500VDC)100mΩ Min
Vibration Durability10~55Hz, move 0.75mm(p-p)
Dielectric Strength500VAC (50~60Hz)
Operating  Temperature-40℃~+85℃
Operating  Humidity85% RH Max
Service LifeElectricalMin.100,000/cycles(Depend on part No.)
MechanicalMin.500,000/cycles
