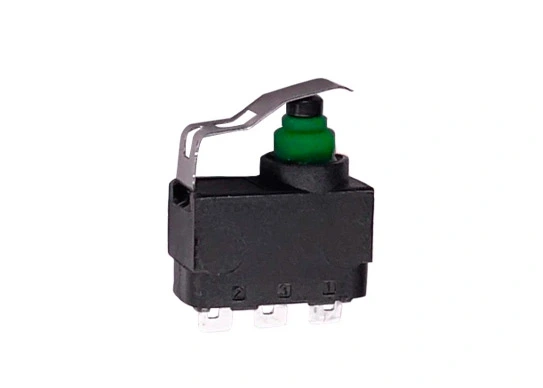

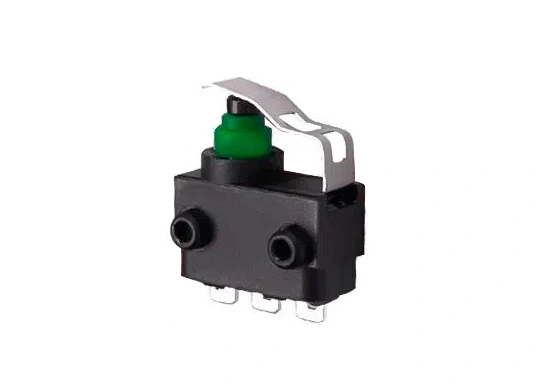

Sealed Micro Switch SPDT 130GF IP67 G303
Sealed Micro Switch SPDT 130GF IP67
Sealed Micro Switch SPDT 130GF IP67
Sealed Micro Switch SPDT 130GF IP67
Sealed Micro Switch SPDT 130GF IP67

Sealed Micro Switch SPDT 130GF IP67 G303

  • Place of Origin: Guangdong, China (Mainland)

  • Brand Name: Unionwell

  • Model Number: G303-130S38A14

  • Terminal: Solder Terminals

  • Circuit Code: SPDT

  • Lever Type: 38# Lever

Contact Us

Specifications of Sealed Micro Switch SPDT 130GF IP67

Rating0.1A, 125/250VAC; 3A 12VDC; 0.1A 48VDC μ1E5
Operating FrequencyElectrical0.1A-120cycles/minute, 3A-10~30 cycles/minute
Mechanical120 cycles/minute
Contact Resistance (Initiative)100mΩ Max.(without wire type)
Insulation Resistance (at 500VDC)100mΩ Min.
Vibration Durability10~55Hz, move 0.75mm(p-p)
Dielectric Strength500VAC (50~60Hz)
Operating Temperature-40℃~+85℃
Operating Humidity85% RH Max
Service LifeElectrical6,000~500,000 cycles (Depend on part NO.)
MechanicalMin.500,000 cycles


Products
Contact with Us
Tel:
+86-20-87713867
E-mail:
inquiry@unionwellgz.com
Add:
RM1311, Renfeng Building, No. 490, Tianhe Road, Tianhe District, Guangzhou, Guangdong, China, 510630.
Unionwell
Switches are us, switch to us. Find quality micro switches at Unionwell

Popular IP67 Waterproof & Dustproof Subminiature Micro Switch G303 series

Subminiature Micro Switch Leaf Lever 130GF G303
Subminiature Micro Switch Leaf Lever 130GF G303
G303 Micro Switch – Molded Lead Wire Downwards
G303 Micro Switch – Molded Lead Wire Downwards
Molded Lead Wires On Left Side Micro Switch G303
Molded Lead Wires On Left Side Micro Switch G303

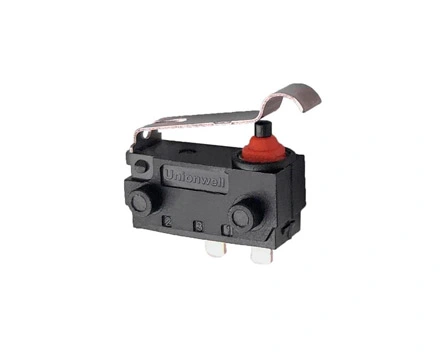

Unionwell G3 Simulated Roller Lever Micro Switch
