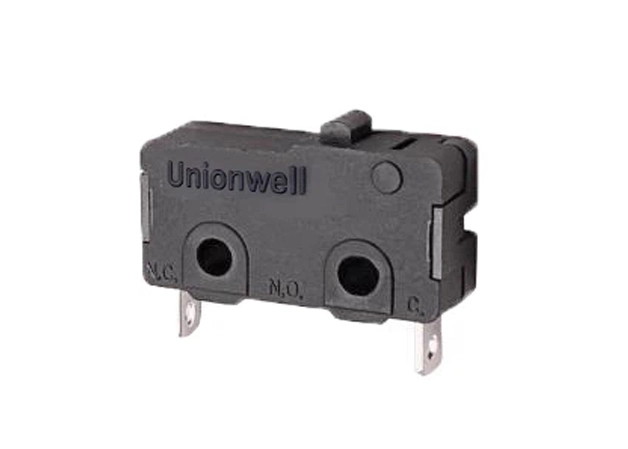

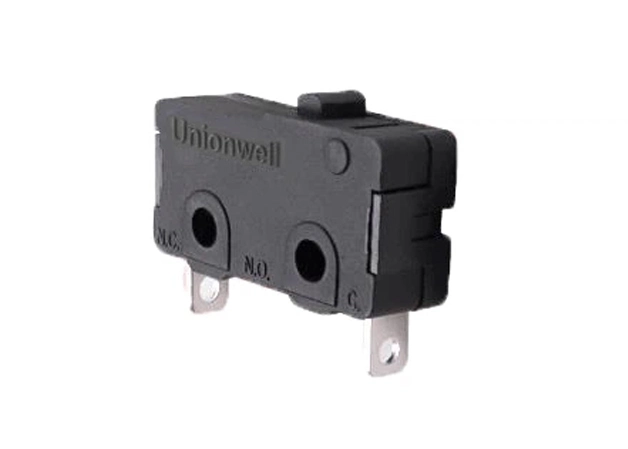

Name: Miniature Micro Switch With SPST-NC Pin Plunger G610
Brand: Guangzhou Unionwell Sensing & Control Technology Co., Ltd.

Description of Miniature Micro Switch With SPST-NC Pin Plunger G610

Unionwell's Miniature Micro Switch with SPST-NC Pin Plunger is a marvel of engineering, offering unparalleled reliability and precision in a compact design. This innovative component is engineered to meet the demands of modern electronic systems, providing seamless operation and precise control.

Products Quick Description of Miniature Micro Switch With SPST-NC Pin Plunger G610

Place of Origin: Guangdong, China (Mainland)
Brand Name: Unionwell
Model Number: G610-250S00B-B14
Terminal Type: Solder Terminals
Circuit code: SPST-NC
Safety Certificates: Products are safety approved by global main market .
Lever Type: No lever pin plunger

Features of Miniature Micro Switch With SPST-NC Pin Plunger G610

Small Compact Size
Variety of Actuator and Terminals
Global Safety Approvals
Long Life and High Reliability
High Rating to 10(2)A, 1/4HP
Customized Designs
Widely used in Auto Control, Appliance Control

Specifications of Miniature Micro Switch With SPST-NC Pin Plunger G610

Rating	P1/P11/P12	ENEC: 0.1A, 125/250V 48VDC 5EA UL : 0.1A, 125/250V 48VDC Gold Plated Contact Optional


	05/051/052	EN EC: 5A,125/250VAC UL: 5A, 1/8HP 125/250VAC

	10/101	EN EC: 10(2)A,125/250VACp 25T125 UL:10.1A,1/4HP 125/250VAC Note: 250gf/Only with "OF "over "250gf"


	12	EN EC: 12(6)A,125/250VAC μ 40T125 UL:12A, 125/250VAC Note: 350gf/Only with 350gf OF


Operating Frequency	Electrical	10-30 cycles/minute
	Mechanical	120 cycles/minute
Contact Resistance (Initiative )		100mΩ Max (without wire type)
Insulation Resistance (at 500VDC)		100mΩ Min
Dielectric Strength		AC 1,000RMS (50-60Hz)
Storage Temperature		-25℃~+125℃
Storage Humidity		85%RH Max
Service Life	Electrical	10,000-50,000 cycles (Depend on part No.)
	Mechanical	1,000,000 cycles
