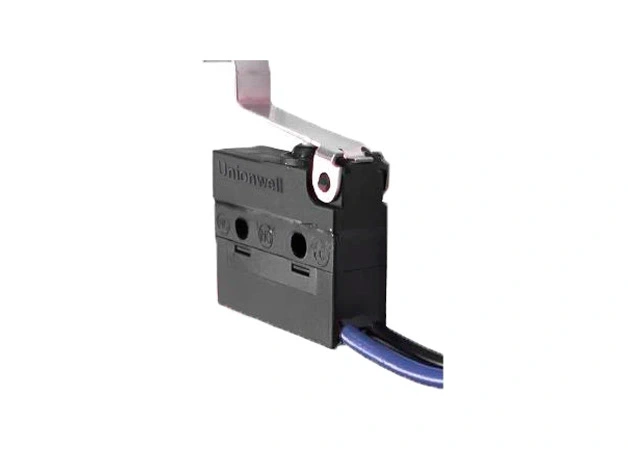

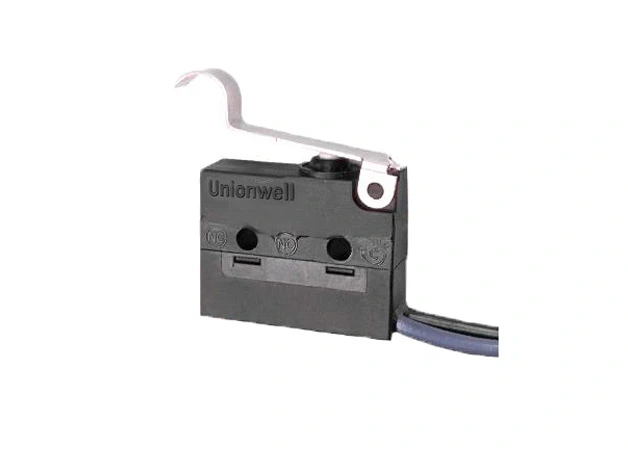

Name: Sealed MINI 200GF Micro Switch With Lever G905
Brand: Guangzhou Unionwell Sensing & Control Technology Co., Ltd.

Descriptions of Sealed MINI 200GF Micro Switch With Lever G905

Unionwell's G905 Sealed Mini 200gf Micro Switch with Lever represents a breakthrough in electronic component design, offering unparalleled reliability and precision. Crafted with meticulous attention to detail and utilizing cutting-edge sealing technology, this switch ensures seamless integration and dependable performance in even the harshest environments.

The G905's miniature size and 200gf actuation force make it versatile, catering to a variety of applications across industries. Whether in automotive, consumer electronics, or industrial machinery, its sealed construction provides protection against dust, moisture, and other contaminants, ensuring long-term reliability.

Features of Sealed MINI 200GF Micro Switch With Lever G905

Tight Configuration, Small Contact Gap, Snap Action
Long Life, High Reliability
Global Safety Approvals
Variety of Terminals
Wide Range Operating Force
Wide Range Temperature Grade
With Optional PTI Grade
Variety of Levers

Specifications of Sealed MINI 200GF Micro Switch With Lever G905

Rating	p1	0.1A 125/250VAC 48VDC/GoldPlated Contact Optional
	05	UL: 5A 125/250VAC ENEC: 6A 125/250 1E4; 3A 125/250VAC 30VDC 5E4 µ 25T120
Operating Frequency	Electrical	10~30cycles/minute
	Mechanical	120cycles/minute
Contact Resistance (Initiative)		100mΩMax/It depends on the wire length for the type with wire
Insulation Resistance (at 500VDC)		100M Ω Min
Dielectric Strength		AC1,000V RMS (50~60Hz)
Storage Temperature		-25°C~+120°C
Storage Humidity		85%RH Max
Service Life	Electrical	10,000cycles/Depend on part No.
	Mechanical	500,000cycles
