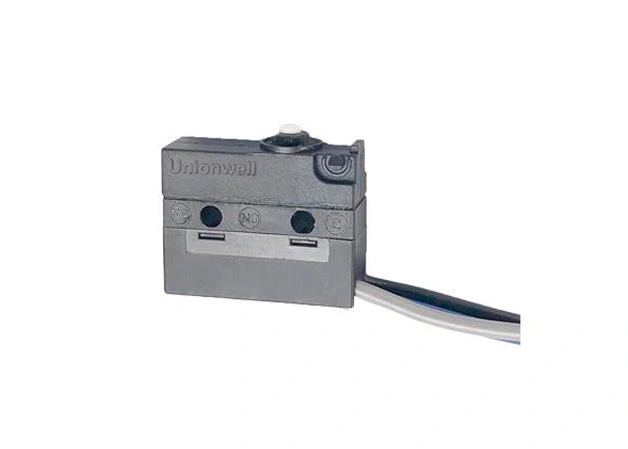

Name: Miniature Switch Wires Leads To Side G9
Brand: Guangzhou Unionwell Sensing & Control Technology Co., Ltd.

Descriptions of Miniature Switch Wires Leads To Side G9

Miniature Switch with Wires Leads to Side G9 epitomizes compact efficiency and seamless integration. These switches, featuring the G9 configuration, are tailored for applications demanding space-saving solutions without compromising performance. The wires' side placement enhances versatility, facilitating easy installation and connection in confined areas.

Engineered with precision, they ensure reliable electrical contact and swift response. From automotive controls to industrial equipment, G9 switches with side wire leads prove indispensable in diverse electronic systems. Their miniature design and dependable functionality make them a go-to choice for engineers seeking compact yet robust switching solutions in modern electronic designs.

Specifications of Miniature Switch Wires Leads To Side G9

Rating	P1	0.1A 125/250VAC48VDC 5E4 Gold Plated Contact Optional
	05	UL: 5A 125/250VAC ENEC: 6A 125/250VAC1E4; 3A 125/250VAC 30VDC 25T120 μ 5E4
Operating Frequency	Electrical	10~30 cycles/min
	Mechanical	120 cycles/min
Contact Resistance (Initial Value)		100mΩ Max (It depends on the wire length for the type with wire)
Insulation Resistance (at 500VDC)		100MΩ Min
Dielectric Strength		AC1,000V RMS (50~60Hz)
Operating Temperature		-25℃~+120℃
Operating Humidity		85%RH Max
Service Life	Electrical	10,000~100,000 cycles(Depend on P/N)
	Mechanical	500,000 cycles
