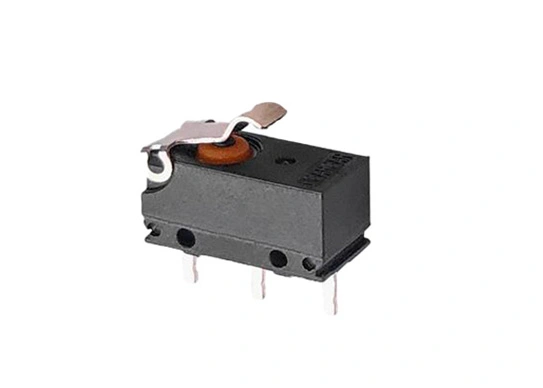

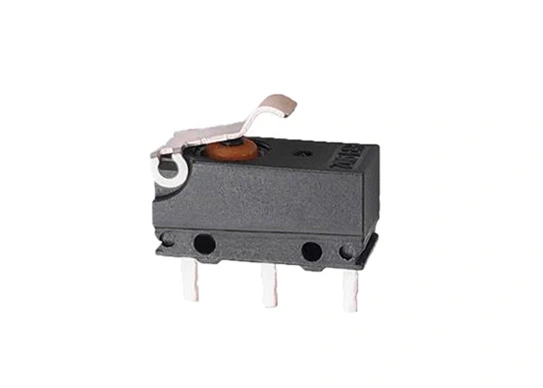

G10B IP67 Waterproof Micro Switch with Straight PCB Terminals
G10B03-150P02AU-02
G10B03-150P02AU-02
G10B03-150P02AU-2

G10B IP67 Waterproof Micro Switch with Straight PCB Terminals

  • Place of Origin: Guangdong, China (Mainland)

  • Brand Name: Unionwell

  • Model Number: G10B03-150P02AU

  • Electrical Rating: ENEC/CQC, 3A 125/250VAC 30VDC, 1E4 μ 40T85

  • Operating Force: 150gf Max

  • Terminal Style: Straight PCB Terminals

  • Lever Type: 02# Straight Lever

  • Circuit Code: SPDT

  • Features: Small compact size, long life & high reliability, waterproof (IP67) and dustproof design, widely used in appliance and industrial control.

Contact Us Datasheet

The G10B IP67 Waterproof Micro Switch with Straight PCB Terminals (G10B03-150P02AU) is engineered to deliver high performance and precision control. Certified by ENEC/CQC and meeting UL/cUL standards, the switch is built for demanding applications. Featuring a 02# straight lever design, the unit maintains a compact size without compromising durability. Its straight PCB terminals and SPDT circuit code offer reliable connectivity, making it ideal for various applications in both appliances and industrial control systems.


Parameters:

RatingP10.1A 125/250VAC 30VDC
033A  125/250VAC 30VDC
Operating FrequencyElectrical10~30  Cycles/minute
Mechanical120 Cycles/minute
Contact Resistance(initial value)100mΩ Max
Insulation Resistanceat 500VDC,100MΩ Min.
Dielectric StrengthAC 600VAC RMS (50-60HZ)
Storage Temperature-40°C~+85°C
Storage Humidity85%RH Max
Service LifeElectrical10,000 Cycles
Mechanical300,000 Cycles


Products

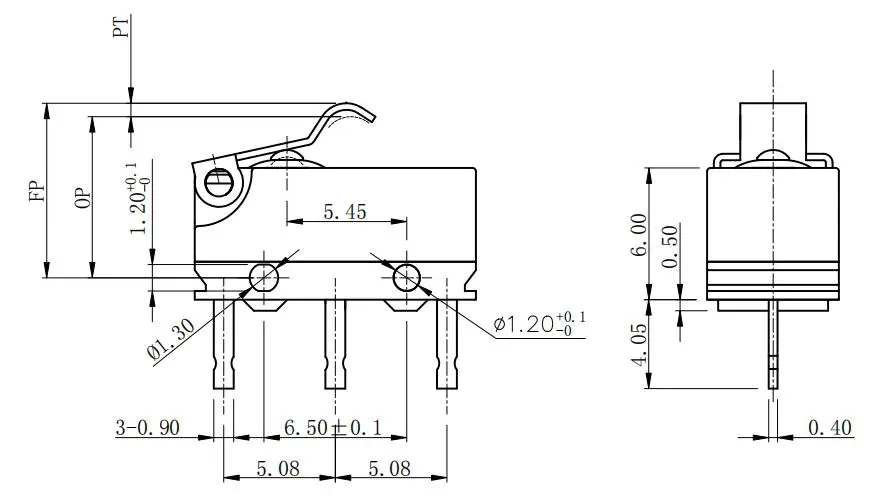

G10B IP67 Waterproof Micro Switch with Straight PCB Terminals Drawings

G10B03-150P02A
