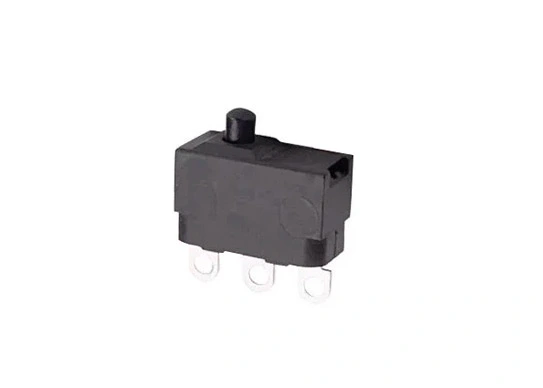

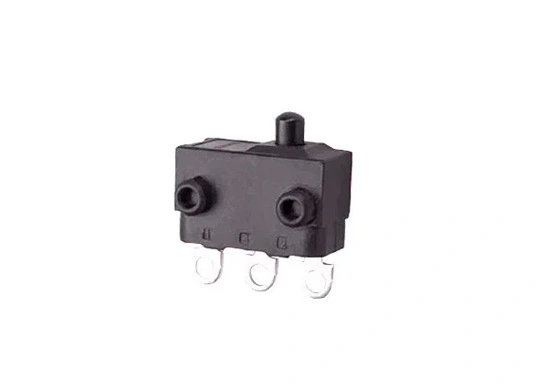

Subminiature Micro Switch With Big Solder Terminals
Subminiature Micro Switch With Big Solder Terminals
Subminiature Micro Switch With Big Solder Terminals
Subminiature Micro Switch With Big Solder Terminals

Subminiature Micro Switch With Big Solder Terminals

  • Subminiature Micro Switch With Big Solder Terminals

  • Brand Name: Unionwell

  • Model Number: G303B-130I00A26C

  • Rating: 0.1A 125/250VAC; 3A 12VDC; 0.1A 48VDC μ 1E5

  • Terminal: Big Solder Terminals

  • Circuit Code: SPST

  • Lever Type: No Lever Pin Plunger

  • Deigned For Water and Dust Tight (IP67)

  • Long life and High Reliability

  • Widely used in Automotive Electronics, Appliance control , Industrial Control etc

Contact Us

Specifications of Subminiature Micro Switch With Big Solder Terminals

Rating0.1A, 125/250VAC; 3A/12VDC; 0.1A/48VDC; μ1E5
Operating FrequencyElectrical0.1-120 cycles/minute; 3-10~30 cycles/minute
Mechanical120 cycles/minute
Contact Resistance (Initiative)100mΩ Max (without wire type)
Insulation Resistance (at 500VDC)100mΩ Min.
Vibration Durability10~55Hz, move 0.75mm(p-p)
Dielectric Strength500VAC (50~60Hz)
Operating Temperature-40℃~+85℃
Operating Humidity85% RH Max
Service LifeElectricalMin. 100,000/cycles(Depend on part No.)
MechanicalMin. 500,000/cycles
