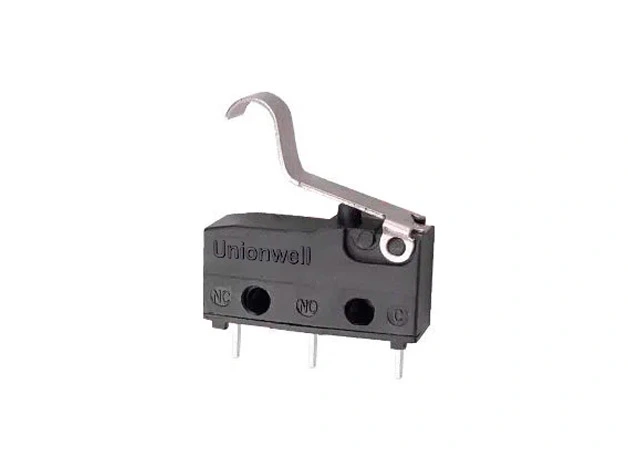

Miniature Switch 300GF Wide PCB Connect
Miniature Switch 300GF Wide PCB Connect
Miniature Switch 300GF Wide PCB Connect

Miniature Switch 300GF Wide PCB Connect

  • Brand Name: Unionwell

  • Model Number: G9110-300K05D1

  • Terminal Type: Wide Straight PCB Connect

  • Circuit Code: SPDT

  • Lever Type: Small Simulated Roller Lever

Contact Us

Product Features of Miniature Switch 300GF Wide PCB Connect

  • Small compact size

  • Long life, high reliability

  • Variety of terminals and levers

  • Widely used in home appliances and other industry control


Specifications of Miniature Switch 300GF Wide PCB Connect

RatingP1ENEC/UL: 0.1A 125/250VAC 48VDC Gold Plated Contact Optional
05ENEC: 5A 125/250VAC; 5A 1/8HP, 125/250VAC
10ENEC: 10(1.5A) 125/125VAC; UL: 10A 1/4HP 125/250VAC
Operating FrequencyElectrical10~30 cycles/min
Mechanical120 cycles/min
Contact Resistance (Initiative)100mΩ Max
Insulation Resistance (at 500VDC)100mΩ Min
Dielectric StrengthAC 1,000V RMS(50-60Hz)
Storage Temperature-40℃~+125℃ or -40℃~+85℃
Storage Humidity85% RH Max.
Service LifeElectrical10,000~100,000 cycles (Depend on P/N)
MechanicalMin 100,000 cycles
