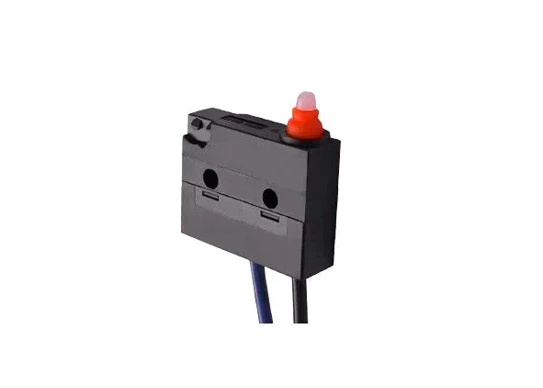

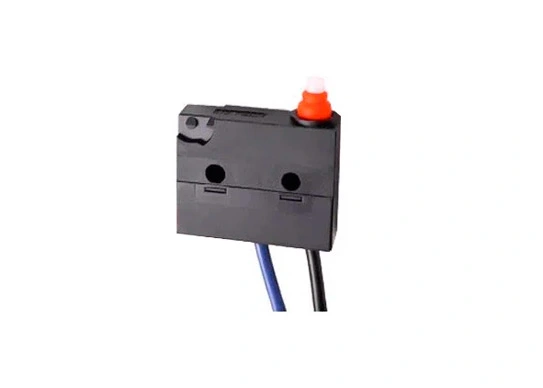

Place of Origin: Guangdong, China (Mainland)
Brand Name: Unionwell
Model Number: G9A05-200E00CF-200
Terminal Type: Wires Leads to Bottom
Circuit Code: SPST-NO
Rating
P1
0.1A 125/250VAC 48VDC
Gold Plated Contact Optional
05
UL: 5A 125/250VAC
ENEC: 6A 125/250 1E4; 3A 125/250VAC 30VDC 5E4 µ 25T120
Operating Frequency
Electrical
10~30 cycles/minute
Mechanical
120 cycles/minute
Contact Resistance (Initiative)
100mΩ Max (It depends on the wire length for the type with wire)
Insulation Resistance (at 500VDC)
100MΩ Min
Dielectric Strength
AC1,000V RMS (50~60Hz)
Storage Temperature
-25°C~+120°C
Storage Humidity
85%RH Max
Service Life
10,000 cycles (Depend on part No.)
500,000 cycles
