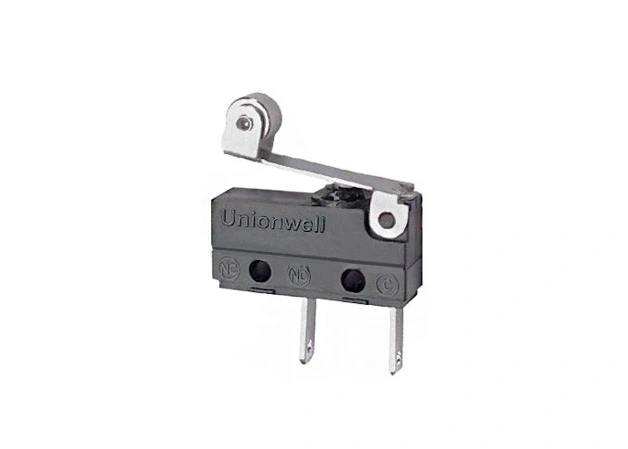

Name: Sealed Micro Switch With Special Terminals G9
Brand: Guangzhou Unionwell Sensing & Control Technology Co., Ltd.

The Sealed Micro Switch G9 features special terminals designed for enhanced sealing and reliability. Ideal for applications requiring protection against environmental factors like dust and moisture, this switch ensures consistent performance in harsh conditions. Its specialized terminals contribute to its durability and effectiveness in demanding environments.

Features of Sealed Micro Switch With Special Terminals G9

Dust and Water Proof(IP67)Design
Small Compact Size
Long Life, High Reliability
Variety of Terminals and Levers
Wide Range Operating Force
Widely used in Auto Control, Appliance and Other Industry Control

Specifications of Sealed Micro Switch With Special Terminals G9

Rating	p1	0.1A 125/250VAC 48VDC/Gold Plated Contact Optional
	05	UL: 5A 125/250VAC ENEC: 6A 125/250 1E4;3A 125/250VAC 30VDC 5E4 µ25T120
Operating Frequency	Electrical	10~30cycles/minute
	Mechanical	120cycles/minute
Contact Resistance(Initiative)		100mΩ Max/It depends on the wire length for the type with wire
Insulation Resistance (at 500VDC)		100mΩ Min
Dielectric Strength		AC1,000V RMS (50~60Hz)
Storage Temperature		-25°C~+120°C
Storage Humidity		85%RH Max
Service Life	Electrical	10,000cycles/Depend on part No.
	Mechanical	500,000cycles
