Place of Origin: Guangdong, China (Mainland)
Brand Name: Unionwell

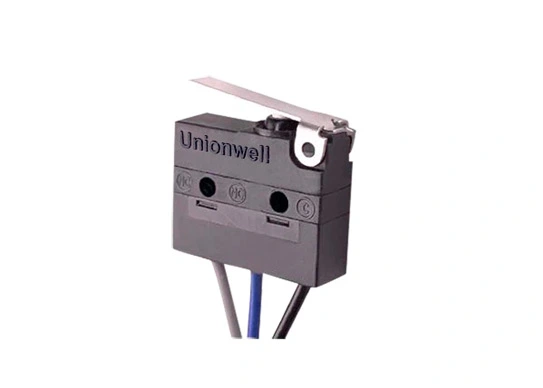

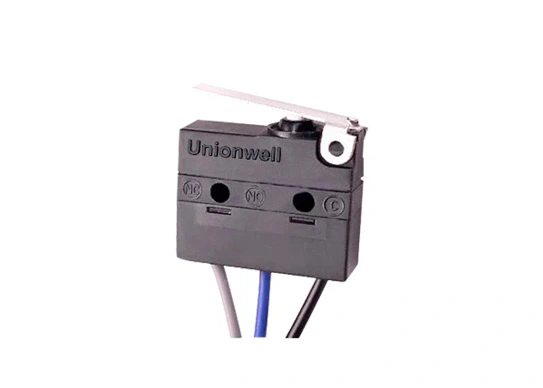

Model Number: G9P1-200E01W1-G250
Terminal Type: Wires Leads to Bottom
Circuit Code: SPDT
Lever Type: Short Straight Lever
Micro switches offer high precision and accuracy in controlling electrical currents, making them a preferred choice in many applications. They are small but highly reliable and durable, which makes them ideal for use in critical applications such as aerospace and healthcare industries. The ability to precisely regulate electrical currents means that micro switches can help improve the efficiency, safety, and reliability of the devices they are integrated within.
Rating | P1 | 0.1A 125/250VAC 48VDC Gold Plated Contact Optional |
05 | UL: 5A 125/250VAC | |
ENEC: 6A 125/125 1E4; 3A 125/250VAC 30VDC 5E4 μ25T120 | ||
Operating Frequency | Electrical | 10~30 cycles/min |
Mechanical | 120 cycles/min | |
Contact Resistance (Initiative) | 100mΩ Max (lt depends on the wire length for the type with wire) | |
Insulation Resistance (at 500VDC) | 100mΩ Min | |
Dielectric Strength | AC 1,000V RMS(50-60Hz) | |
Storage Temperature | -25℃~+120℃ | |
Storage Humidity | 85% RH Max. | |
Service Life | Electrical | 10,000 cycles (Depend on part No.) |
Mechanical | 500,000 cycles |
