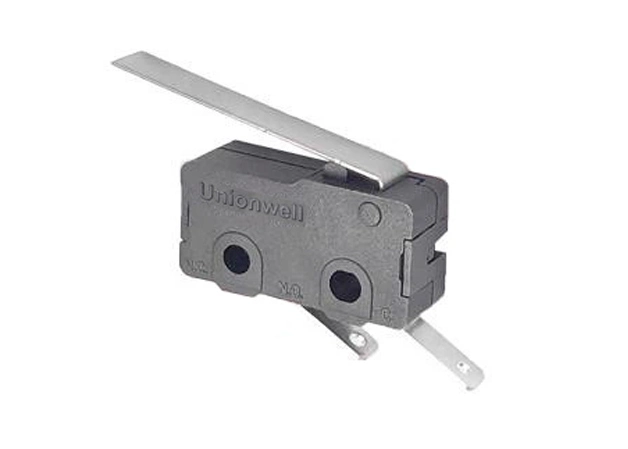

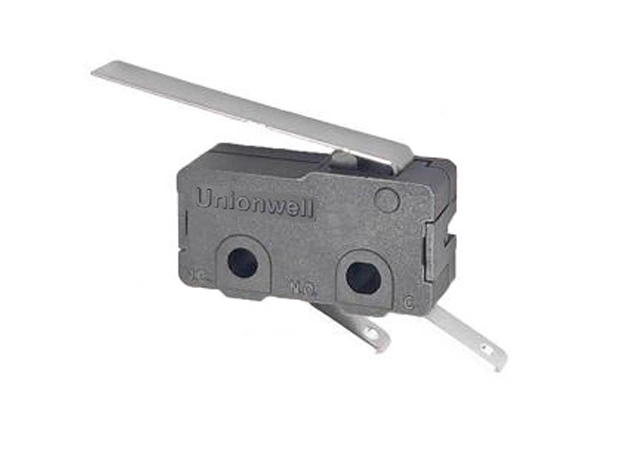

Name: Miniature Micro Switch G605
Brand: Guangzhou Unionwell Sensing & Control Technology Co., Ltd.

Description of Miniature Micro Switch G605

At present, the snap action switches for the household appliances make people's life easier. However, many friends are not familiar with snap action switches, so they will ask this question, what is the reasonable price for snap action switch? Actually, its price is divided into different levels. High quality snap action switch is will select good raw materials for micro switches. The snap action switch price will go high. While low quality snap action switch will choose cheap raw materials to make snap action switch and the price will go low.

Quick Details of Miniature Micro Switch G605

Place of Origin: Guangdong, China (Mainland)
Brand Name: Unionwell
Model Number:G605-250E03CS-T024
Terminal Type: quick connect Terminals
Circuit code: SPST-NO
Lever Type: Long Straight
Company assurance system: ISO9001 & IATF16949 & ISO14001
Application:Air-conditioner,Computer,Game Controller,Pump,Humidifier,Phone,Alarm,Timer,Toy Car etc.

Parameters of Miniature Micro Switch G605

Rating	P1/P11/P12	ENEC:0.1A,125/250V 48VDC 5EA UL:0.1A,125/250V 48VDC Gold Plated Contact Optional
	05/051/052	ENEC:5A,125/250VAC UL:5A, 1/8HP 125/250VAC
	10/101	ENEC:10(2)A,125/250VAC U 25T125 UL:10.1A, 1/4HP 125/250VAC Note:250gf/Only with "OF "over "250gf"
	12	ENEC:12(6)A,125/250VACU40T125 UL:12A, 125/250VACNote:350gf/Only with 350gf OF
Operating Frequency	Electrical	10-30 cycles/minute
Operating Frequency	Mechanical	120 cycles/minute
Contact Resistance(Initiative )		100mΩ Max (without wire type)
Insulation Resistance (at500VDC)		100mΩ Min
Dielectric strength		AC ,1,000RMS(50-60HZ)
Storage Temperature		-25℃~+125℃
Storage Humidity		85%RHMax
Service Life	Electrical	10,000-50,000 /cycles(Depend on part No.)
Service Life	Mechanical	1,000,000/cycles
