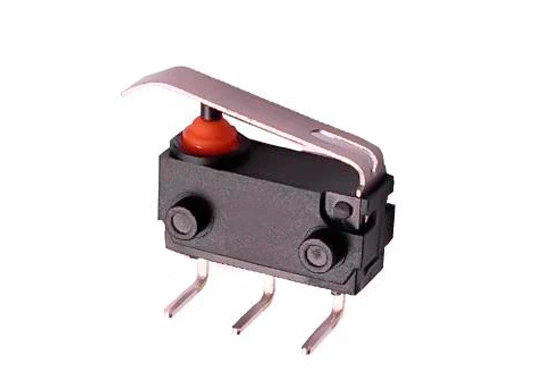

Subminiature Sealed Micro Switch 130GF
Subminiature Sealed Micro Switch 130GF
Subminiature Sealed Micro Switch 130GF
Subminiature Sealed Micro Switch 130GF

Subminiature Sealed Micro Switch 130GF

  • Place of Origin: Guangdong, China (Mainland)

  • Brand Name: Unionwell

  • Model Number: G303-130L09A2B

Contact Us

A micro switch is a small electrical switch that is designed to be activated by the slightest physical force. It consists of a spring-loaded lever or plunger pushed by an actuator. This force causes the lever or plunger to move, activating the switch. Micro switches are commonly used as safety devices in machinery and equipment to perform various control functions and detect the presence or absence of an object.


Specifications of Subminiature Sealed Micro Switch 130GF

Rating0.1A, 125/250VAC; 3A/12VDC; 0.1A/48VDC; μ1E5
Operating FrequencyElectrical0.1A, 120 cycles/min 3A; 10~30 cycles/min
Mechanical120 Cycles/min
Contact Resistance (Initiative)100mΩ Max.(without wire type)
Insulation Resistance (at 500VDC)100mΩ Min.
Vibration Durability10~55Hz, move 0.75mm(p-p)
Dielectric Strength500VAC (50~60Hz)
Operating Temperature-40℃~+85℃
Operating Humidity85% RH Max
Service LifeElectricalMin.100,000 cycles(Depend on part NO.)
MechanicalMin.500,000 cycles
