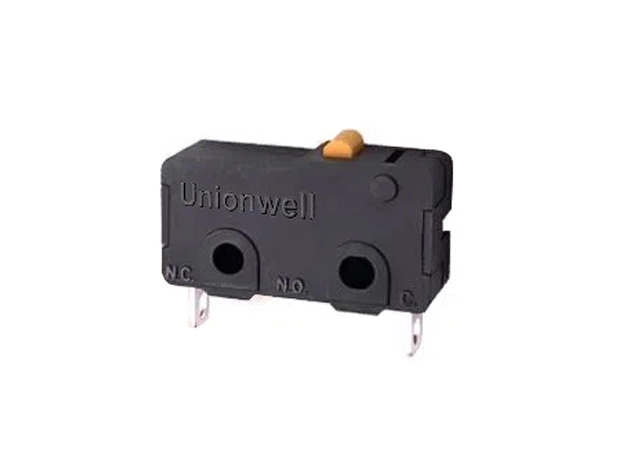

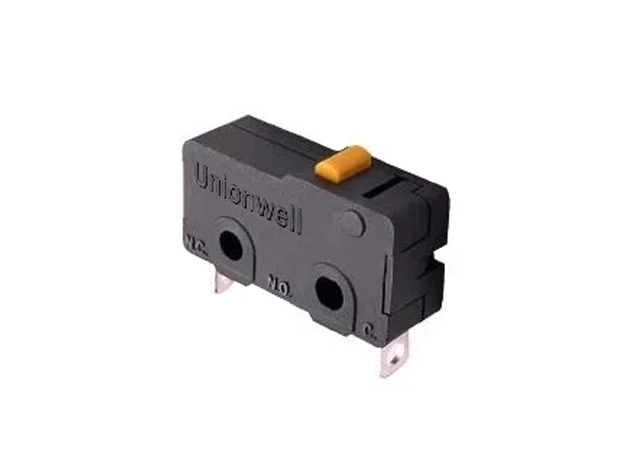

Name: Miniature Micro Switch SPST-NC
Brand: Guangzhou Unionwell Sensing & Control Technology Co., Ltd.

Description of Miniature Micro Switch SPST-NC

Miniature Micro Switch is widely used in circuits to protect the control systems, which is widely applied in electrical devices and control systems. Miniature Micro Switch has gradually become an essential part of high-tech electronic products. Selecting a high-quality miniature micro switch for its application is very significant.

Product Quick Details of Miniature Micro Switch SPST-NC

Miniature Micro Switch SPST-NC
Model Number: G605-150S00BS-T043-18
Terminal Type: Solder Terminals
Circuit Code: SPST-NC
Lever Type: No Lever Pin Plunger

Specifications of Miniature Micro Switch SPST-NC

Rating	P1/P11/P12	ENEC: 0.1A,125/250V 48VDC 5EA UL: 0.1A,125/250V 48VDC Gold Plated Contact Optional
	05/051/052	ENEC: 5A,125/250VAC UL: 5A, 1/8HP 125/250VAC
	10/101	ENEC: 10(2)A,125/250VAC U 25T125 UL: 10.1A, 1/4HP 125/250VAC Note: 250gf/Only with "OF "over "250gf"
	12	ENEC: 12(6)A,125/250VACU40T125 UL: 12A, 125/250VAC Note:350gf/Only with 350gf OF
Operating Frequency	Electrical	10-30 cycles/minute
Operating Frequency	Mechanical	120 cycles/minute
Contact Resistance (Initiative )		100mΩ Max (without wire type)
Insulation Resistance (at 500VDC)		100mΩ Min
Dielectric Strength		AC 1,000RMS(50-60HZ)
Storage Temperature		-25℃~+125℃
Storage Humidity		85%RH Max
Service Life	Electrical	10,000-50,000 cycles (Depend on part No.)
Service Life	Mechanical	1,000,000 cycles
