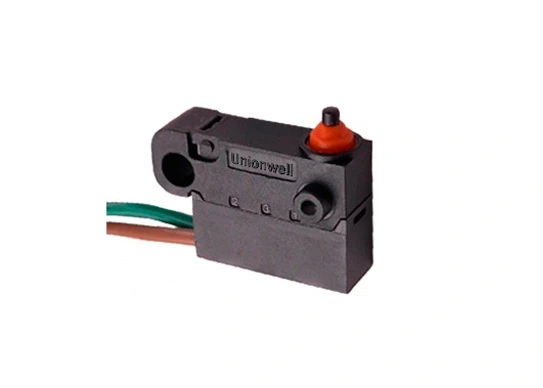

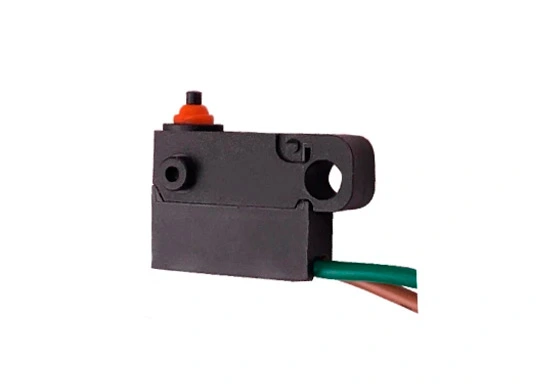

Subminiature Sealed Micro Switch 130GF SPST-NC
Subminiature Sealed Micro Switch 130GF SPST-NC
Subminiature Sealed Micro Switch 130GF SPST-NC
Subminiature Sealed Micro Switch 130GF SPST-NC

Subminiature Sealed Micro Switch 130GF SPST-NC

  • Place of Origin: Guangdong, China (Mainland)

  • Brand Name: Unionwell

  • Model Number: G303-130F00B7-FA350

  • Rating: 0.1A, 125/250VAC; 3A, 12VDC; 0.1A, 48VDC μ 1E5

  • Terminal: Molded Lead Wires on Right Side (Plunger Side)

  • Circuit Code: SPST-NC

  • Lever Type: No Lever Pin Plunger

Contact Us

Specifications of Subminiature Sealed Micro Switch 130GF SPST-NC

Rating0.1A, 125/250VAC; 3A, 12VDC; 0.1A, 48VDC μ 1E5
Operating FrequencyElectrical0.1A-120 cycles/minute, 3A-10~30 cycles/minute
Mechanical120 cycles/minute
Contact Resistance (Initiative)100mΩ Max (without wire type)
Insulation Resistance (at 500VDC)100mΩ Min
Vibration Durability10~55Hz, move 0.75mm(p-p)
Dielectric Strength500VAC (50~60Hz)
Operating  Temperature-40℃~+85℃
Operating  Humidity85% RH Max
Service LifeElectrical6,000~500,000 cycles (Depend on part NO.)
MechanicalMin.500,000 cycles


Products
Contact with Us
Tel:
+86-20-87713867
E-mail:
inquiry@unionwellgz.com
Add:
RM1311, Renfeng Building, No. 490, Tianhe Road, Tianhe District, Guangzhou, Guangdong, China, 510630.
Unionwell
Switches are us, switch to us. Find quality micro switches at Unionwell

Popular Mini Waterproof Micro Switch

Switch Normally Closed IP67
Switch Normally Closed IP67
Push Button On Off Switch Lead Wire G3
Push Button On Off Switch Lead Wire G3

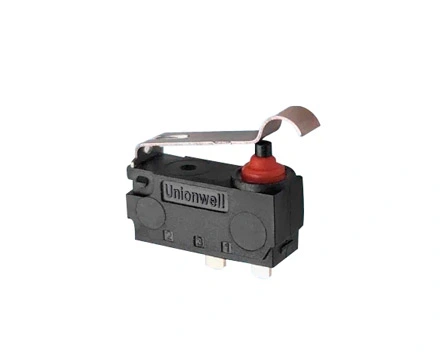

Subminiature Micro Switch With Leaf Lever 130GF
