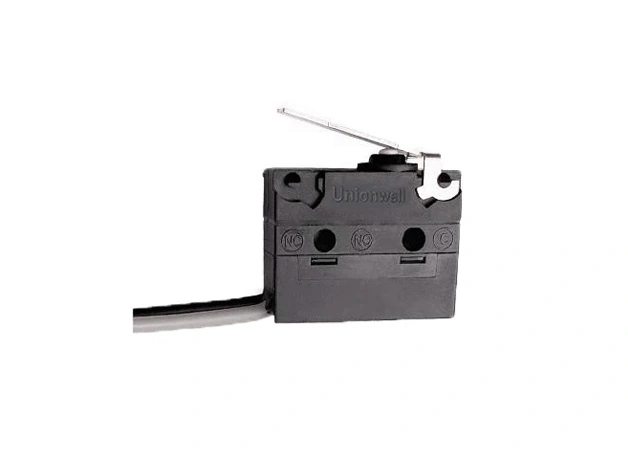

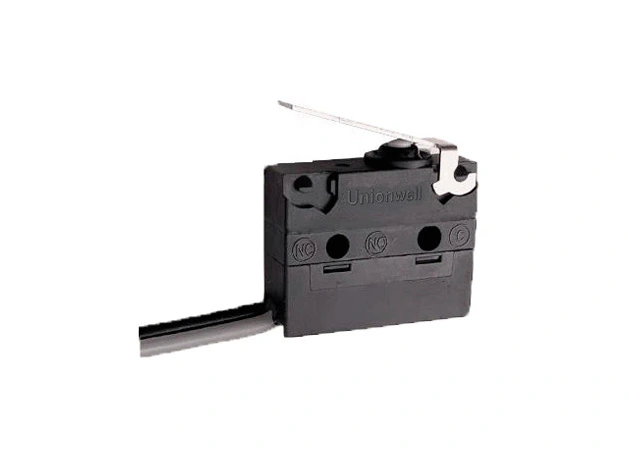

Miniature Micro Switch 200GF SPST-NC
Miniature Micro Switch 200GF SPST-NC
Miniature Micro Switch 200GF SPST-NC
Miniature Micro Switch 200GF SPST-NC

Miniature Micro Switch 200GF SPST-NC

  • Place of Origin: Guangdong, China (Mainland)

  • Brand Name: Unionwell

  • Model Number: G905-200F52W2C-150

  • Terminal Type: Wires Leads to Side (500mm)

  • Circuit Code: SPST-NC

  • Lever Type: Roller Lever

Contact Us

Descriptions of Miniature Micro Switch 200GF SPST-NC

A miniature micro switch is a small, versatile, and reliable electrical switch that is instrumental in a wide range of applications. It is designed to detect changes in mechanical force or pressure and to trigger an electrical signal accordingly. Miniature micro switches are commonly used in various consumer and industrial applications, including home appliances, automotive electronics, medical equipment, and manufacturing processes.


Specifications of Miniature Micro Switch 200GF SPST-NC

RatingP10.1A 125/250VAC 48VDC 5E4 Gold Plated Contact Optional
05UL: 5A 125/250VAC
ENEC: 6A 125/125 1E4; 3A 125/250VAC 30VDC 25T120 μ 5E4
Operating FrequencyElectrical10~30 cycles/min
Mechanical120 cycles/min
Contact Resistance (Initiative)100mΩ Max (lt depends on the wire length for the type with wire)
Insulation Resistance (at 500VDC)100mΩ Min
Dielectric StrengthAC 1,000V RMS(50-60Hz)
Storage Temperature-25℃~+120℃
Storage Humidity85% RH Max.
Service LifeElectrical10,000~100,000 cycles (Depend on P/N)
Mechanical500,000 cycles
