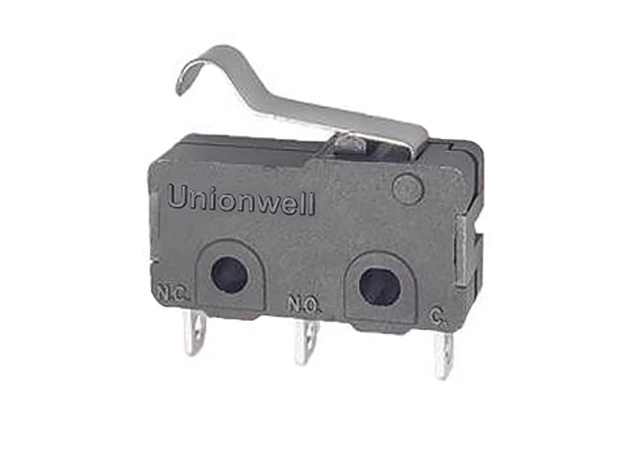

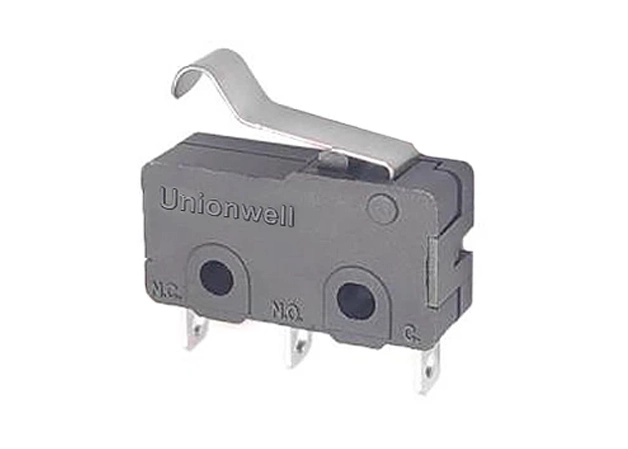

Name: Miniature Micro Switch Solder Terminals G6
Brand: Guangzhou Unionwell Sensing & Control Technology Co., Ltd.

Description of Miniature Micro Switch Solder Terminals G6

The Miniature Micro Switch with Solder Terminals G6 is a reliable and compact switch, perfect for applications requiring precise control in limited space. Its small size makes it ideal for integration into densely packed electronics, while the solder terminals ensure a secure and stable electrical connection. This micro switch is designed to provide dependable performance with a high level of accuracy, making it suitable for a wide range of applications, including home appliances, automotive systems, medical devices, and industrial equipment.

The G6 switch is engineered to handle frequent operations and endure harsh environmental conditions, offering long-lasting durability. Its quick response time and tactile feedback make it a preferred choice for tasks that demand precise actuation and control. Easy to install, the G6 micro switch provides excellent reliability and functionality, meeting the needs of designers and engineers looking for a robust, efficient switching solution that can handle both low and high-current applications.

Quick Details of Miniature Micro Switch Solder Terminals G6

Place of Origin: Guangdong, China (Mainland)

Brand Name: Unionwell

Model Number:G605-250S59A

Terminal Type: Solder Terminals

Circuit code: SPDT

Lever Type: #59 lever

Safety Certificates: Products are safety approved by global main market .

Parameters of Miniature Micro Switch Solder Terminals G6

Rating	P1/P11/P12	ENEC:0.1A,125/250V 48VDC 5EA UL:0.1A,125/250V 48VDC Gold Plated Contact Optional
	05/051/052	ENEC:5A,125/250VAC UL:5A, 1/8HP 125/250VAC
	10/101	ENEC:10(2)A,125/250VAC U 25T125 UL:10.1A, 1/4HP 125/250VAC Note:250gf/Only with "OF "over "250gf"
	12	ENEC:12(6)A,125/250VACU40T125 UL:12A, 125/250VACNote:350gf/Only with 350gf OF
Operating Frequency	Electrical	10-30 cycles/minute
	Mechanical	120 cycles/minute
Contact Resistance(Initiative )		100mΩ Max (without wire type)
Insulation Resistance (at500VDC)		100mΩ Min
Dielectric strength		AC ,1,000RMS(50-60HZ)
Storage Temperature		-25℃~+125℃
Storage Humidity		85%RHMax
Service Life	Electrical	10,000-50,000 /cycles(Depend on part No.)
	Mechanical	1,000,000/cycles
