G10B Waterproof Subminiature Micro Switch with Straight PCB Terminals

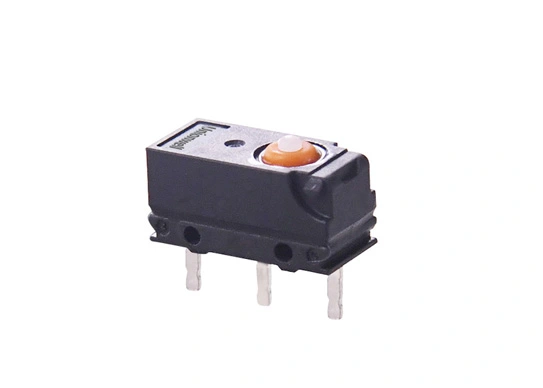

G10B03-150P00A-T081U-02
G10B03-150P00A-T081U-02

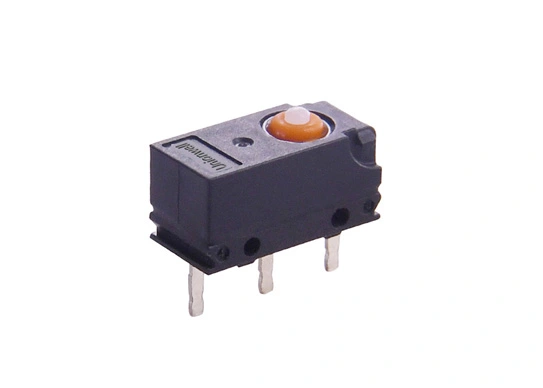

G10B03-150P00A-T081U-2

G10B Waterproof Subminiature Micro Switch with Straight PCB Terminals

  • Model Number: G10B03-150P00A-T081U

  • Electrical Rating: 3A 125/250VAC 30VDC

  • Operating Force: 150gf Max

  • Terminal Style: Straight PCB Terminals

  • Circuit Code: SPDT

  • Features: Compact Size, Long Life, High Reliability, IP67 Waterproof and Dustproof

The Unionwell G10B Waterproof Subminiature Micro Switch with Straight PCB Terminals (G10B03-150P00A-T081U) is a waterproof subminiature micro switch designed for applications requiring high reliability and compact dimensions. Its IP67 rating ensures excellent protection against water and dust ingress, making it suitable for various demanding environments.


Key Features:

  • Compact Design: The small and compact size allows for integration into space-constrained applications.

  • Durable and Reliable: Engineered for long life with high reliability, ensuring consistent performance over time.

  • IP67 Rated: Designed to be waterproof and dustproof, suitable for harsh environments.

  • Versatile Applications: Widely used in appliances and industrial control systems.


Parameters:


RatingP10.1A 125/250VAC 30VDC
033A  125/250VAC 30VDC
Operating FrequencyElectrical10~30  cycles/minute
Mechanical120 cycles/minute
Contact Resistance(initial value)100mΩ Max
Insulation Resistanceat 500VDC,100MΩ Min.
Dielectric StrengthAC 600VAC RMS (50-60HZ)
Storage Temperature-40°C~+85°C
Storage Humidity85%RH Max
Service LifeElectrical10,000 cycles
Mechanical300,000 cycles


Products

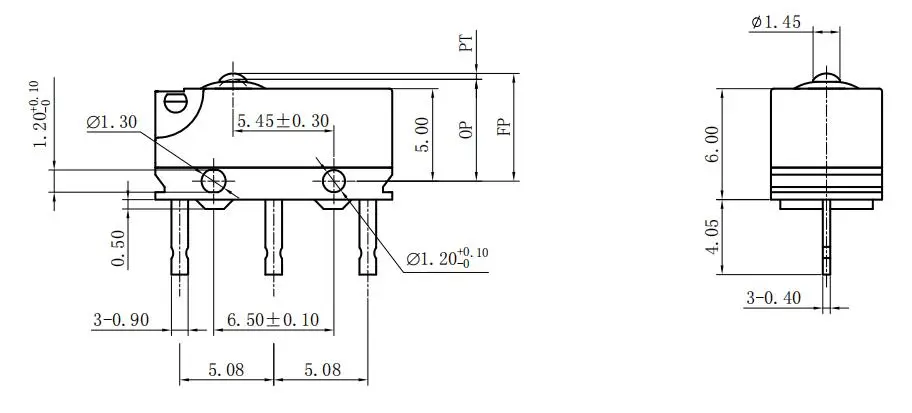

G10B Waterproof Subminiature Micro Switch with Straight PCB Terminals Drawing

G10B03-150P00A-T081-drawing
