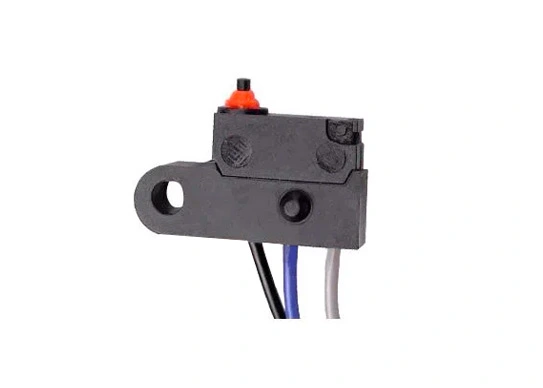

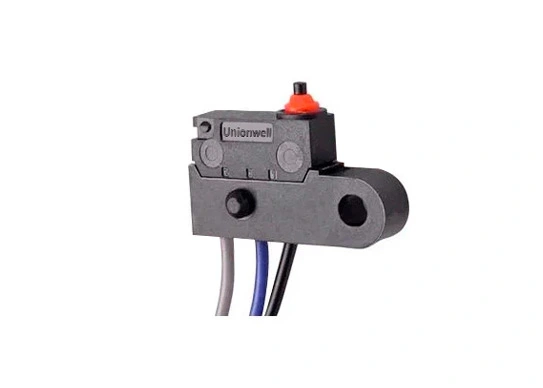

G303 Micro Switch – Molded Lead Wire Downwards
Subminiature Micro Switch SPDT IP67
Subminiature Micro Switch SPDT IP67
Subminiature Micro Switch SPDT IP67

G303 Micro Switch – Molded Lead Wire Downwards

  • Brand: Unionwell

  • Origin: Guangdong, China (Mainland)

  • Model: G303-130E00A1-GF-T290U

  • Electrical Rating:

    ENEC: 0.1A 125/250VAC; 48VDC; 3A 12VDC; μ 1E5

    UL: 0.1A 125/250VAC; 48VDC; 3A 12VDC

  • Operating Force: 130gf Max

  • Terminal Type: Molded Lead Wire Downwards

  • Circuit Code: SPDT

Contact Us

The G303 Micro Switch features a compact design with molded lead wire downwards, ensuring easy installation and reliable performance. Made by Unionwell in Guangdong, China (Mainland), this switch is certified globally with ENEC and UL electrical ratings, ensuring safety and quality. Its SPDT circuit design makes it ideal for various applications such as automotive and home appliances. Enjoy long service life and high reliability with a switch that meets rigorous industry standards.


Parameters:

Rating0.1A, 125/250VAC; 3A/12VDC; 0.1A/48VDC; μ1E5
Operating FrequencyElectrical0.1-120 cycles/minute; 3-10~30 cycles/minute
Mechanical120 cycles/minute
Contact Resistance(Initiative)100mΩ Max (without wire type)
Insulation Resistance (at 500VDC)100mΩ Min
Vibration Durability10-55HZ, move 0.75mm(p-p)
Dielectric strength500VAC (50-60HZ)
Operating  Temperature-40℃~+85℃
Operating  Humidity85%RHMax
Service LifeElectricalMin.100,000/cycles(Depend on part No.)
MechanicalMin.500,000/cycles
